AirDog

AirDog II-5G DF-100-5G Lift Pump 1998.5-2004 Dodge 5.9L Cummins Block-Mount Equipped

SKU: adgA7SPBD253 UPC: 813094015535
In stock - 9 items available
$825.00

Have a question about this part? We'll answer it.

Shipping policyReturns & core returnsQuestions? Call (503) 235-1947

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

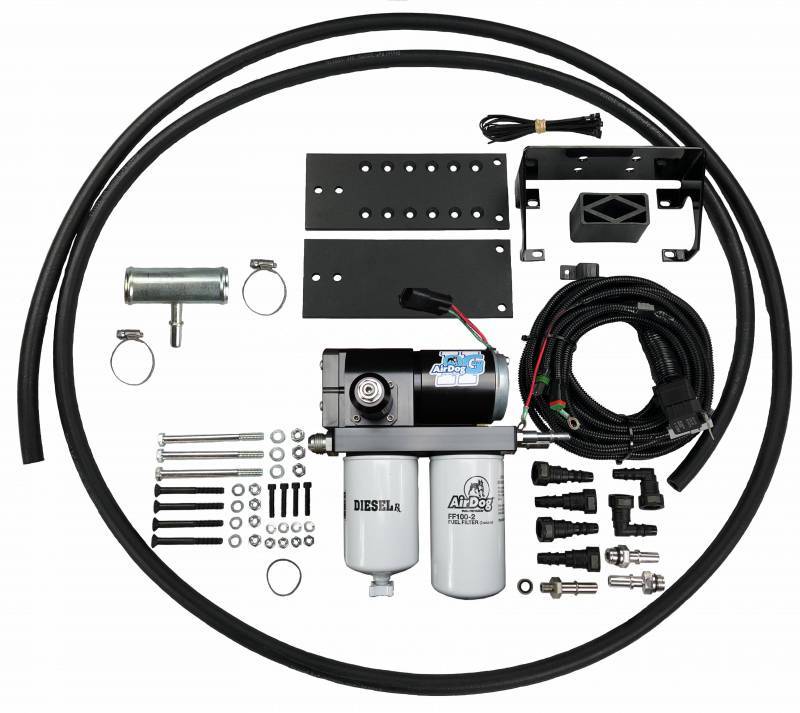

On 1998.5-2004 Dodge Ram 5.9L 24V Cummins trucks, the PureFlow AirDog II-5G DF-100-5G kit delivers up to 100 GPH of filtered fuel, separating out air, vapor, water and particulates before they reach the injection pump. AirDog rates the 100 GPH version for stock fuel trucks.

Key Features

  • 100 GPH (gallons per hour) flow rate
  • Integrated diaphragm fuel pressure regulator - adjustable and capable of boost compensation
  • Patented air separation plus a water separator and fuel filter
  • Water separator removes 92% of water per SAE J1488 (AirDog specification); 2 micron fuel filtration
  • Demand Flow design recirculates fuel the injection system does not use back through the filter base
  • 12-gauge wiring harness from the battery to the motor; a Metri-Pack 280 connector replaces the previous Deutsch 2-pin, and the remaining connectors are Weather Pack
  • 4G motor design with a four-bearing motor and intermediate shaft
  • Larger porting than earlier AirDog systems to reduce inlet cavitation and noise
  • Uses AirDog FF100-2 fuel filter and WS100 water separator for service

Installation

This version is for trucks that still have the factory block-mounted lift pump (no in-tank pump). The AirDog mounts to the frame rail with the supplied sandwich plate, the suction side connects to the factory suction fitting in the fuel module, and the pressure side feeds directly into the side of the injection pump, bypassing the factory fuel filter housing and block-mounted pump. The air/vapor return goes back to the tank through a filler neck tee. Refer to the AirDog installation manual for the complete parts list.

Fitment

  • 1998.5-2004 Dodge Ram with the 5.9L 24V Cummins (VP44 and early CP3 common rail)
  • For trucks WITHOUT the in-tank fuel pump (factory block-mounted lift pump). Trucks converted to the in-tank pump use AirDog A7SPBD354.

Product Details

  • Brand: AirDog (PureFlow Technologies)
  • Manufacturer Part Number: A7SPBD253
  • Model: DF-100-5G
