AirDog

AirDog II-5G DF-165-5G High Pressure Lift Pump 2017-2022 Ford 6.7L Power Stroke

SKU: adgA7SABF590 UPC: 813094014903
In stock - 8 items available
$1,007.00

Have a question about this part? We'll answer it.

Shipping policyReturns & core returnsQuestions? Call (503) 235-1947

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

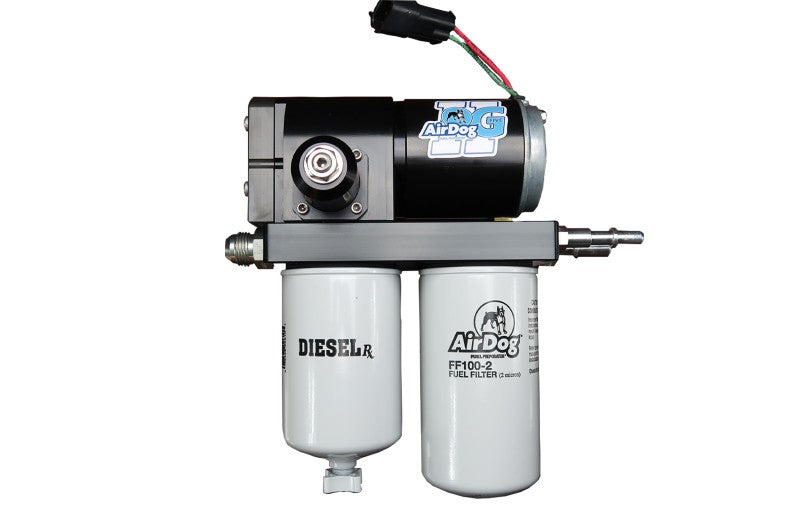

The AirDog II-5G DF-165-5G is a complete fuel air separation system for 2017-2022 Ford Super Duty 6.7L Power Stroke trucks. It pairs a 165 GPH gerotor lift pump with AirDog's patented air separation, a water separator and a fuel filter, so the injection system receives clean fuel with the entrained air, vapor and water removed. AirDog rates the 165 GPH version for moderately modified trucks.

Key Features

  • 165 GPH (gallons per hour) flow rate
  • Integrated diaphragm fuel pressure regulator - adjustable and capable of boost compensation
  • Patented air separation plus a water separator and fuel filter
  • Water separator removes 92% of water per SAE J1488 (AirDog specification); 2 micron fuel filtration
  • Demand Flow design recirculates fuel the injection system does not use back through the filter base
  • 12-gauge wiring harness from the battery to the motor; a Metri-Pack 280 connector replaces the previous Deutsch 2-pin, and the remaining connectors are Weather Pack
  • 4G motor design with a four-bearing motor and intermediate shaft
  • Larger porting than earlier AirDog systems to reduce inlet cavitation and noise
  • Uses AirDog FF100-2 fuel filter and WS100 water separator for service

Installation

On this application the pump is mounted inside the bed, forward of the rear wheel, with a bed bracket. The fuel module is modified so the factory venturi fill system keeps working, the pump draws from the modified module and feeds the factory frame rail feed line, and the pressure line is tapped with a return Y to supply the venturi in the basket. The AirDog return goes back to the modified fuel module. Refer to the AirDog installation manual for the complete parts list.

Fitment

  • 2017-2022 Ford Super Duty pickups with the 6.7L Power Stroke
  • Pickup applications only - mounts inside the bed with a bed bracket (short bed and long bed layouts shown in the AirDog manual).

Product Details

  • Brand: AirDog (PureFlow Technologies)
  • Manufacturer Part Number: A7SABF590
  • Model: DF-165-5G

Orders typically ship within 24–48 hours of being received, but because of vendor shipping times some orders may take longer. We ship within the United States only (48 contiguous states plus DC).

Shipping Height: 7.8

Shipping Length: 19.1

Shipping Width: 13.3
