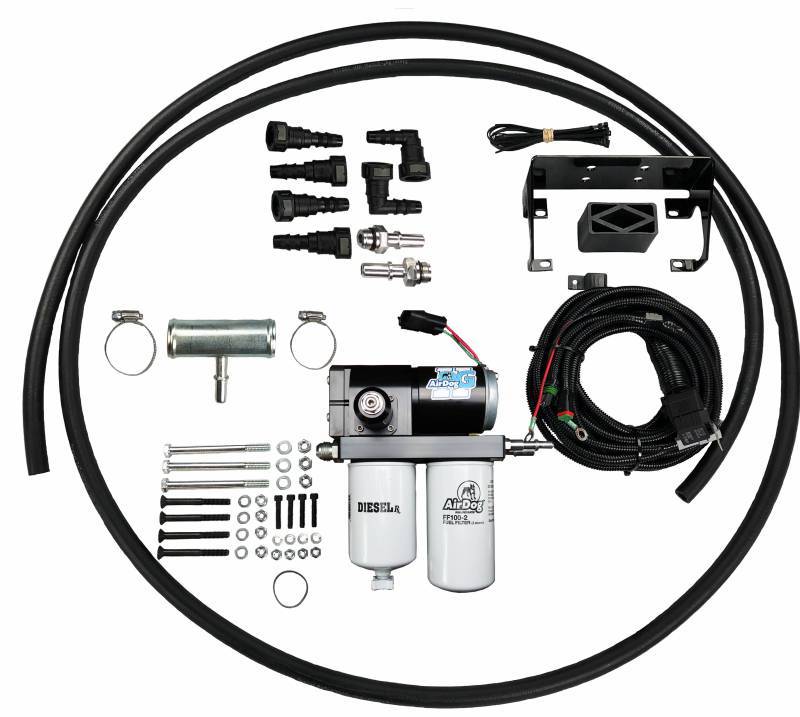

AirDog II-5G DF-100-5G Lift Pump 2011-2014 Chevy/GMC 6.6L LML Duramax

AirDog's II-5G DF-100-5G is a complete fuel air separation system for 2011-2014 Chevrolet and GMC 6.6L LML Duramax trucks. It pairs a 100 GPH gerotor lift pump with AirDog's patented air separation, a water separator and a fuel filter, so the injection system receives clean fuel with the entrained air, vapor and water removed. AirDog rates the 100 GPH version for stock fuel trucks.

Duramax trucks do not come with a lift pump from the factory, which is why AirDog notes that its Duramax kits typically show the largest gains.

Key Features

• 100 GPH (gallons per hour) flow rate
• Integrated diaphragm fuel pressure regulator - adjustable and capable of boost compensation
• Patented air separation plus a water separator and fuel filter
• Water separator removes 92% of water per SAE J1488 (AirDog specification); 2 micron fuel filtration
• Demand Flow design recirculates fuel the injection system does not use back through the filter base
• 12-gauge wiring harness from the battery to the motor; a Metri-Pack 280 connector replaces the previous Deutsch 2-pin, and the remaining connectors are Weather Pack
• 4G motor design with a four-bearing motor and intermediate shaft
• Larger porting than earlier AirDog systems to reduce inlet cavitation and noise
• Uses AirDog FF100-2 fuel filter and WS100 water separator for service

Fitment

• 2011-2014 Chevrolet Silverado and GMC Sierra 2500HD/3500HD with the 6.6L LML Duramax

Product Details

• Brand: AirDog (PureFlow Technologies)
• Manufacturer Part Number: A7SPBC260
• Model: DF-100-5G
