AirDog II-5G DF-165-5G Lift Pump 2001-2010 Chevy/GMC 6.6L Duramax

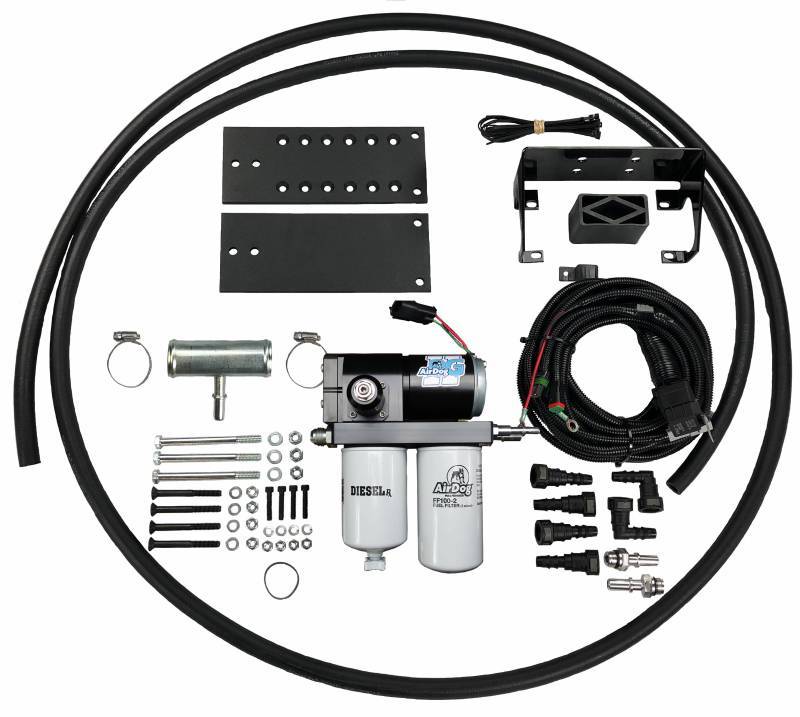

AirDog's II-5G DF-165-5G is a complete fuel air separation system for 2001-2010 Chevrolet and GMC 6.6L Duramax trucks. It pairs a 165 GPH gerotor lift pump with AirDog's patented air separation, a water separator and a fuel filter, so the injection system receives clean fuel with the entrained air, vapor and water removed. AirDog rates the 165 GPH version for moderately modified trucks.

Duramax trucks do not come with a lift pump from the factory, which is why AirDog notes that its Duramax kits typically show the largest gains.

Key Features

• 165 GPH (gallons per hour) flow rate
• Integrated diaphragm fuel pressure regulator - adjustable and capable of boost compensation
• Patented air separation plus a water separator and fuel filter
• Water separator removes 92% of water per SAE J1488 (AirDog specification); 2 micron fuel filtration
• Demand Flow design recirculates fuel the injection system does not use back through the filter base
• 12-gauge wiring harness from the battery to the motor; a Metri-Pack 280 connector replaces the previous Deutsch 2-pin, and the remaining connectors are Weather Pack
• 4G motor design with a four-bearing motor and intermediate shaft
• Larger porting than earlier AirDog systems to reduce inlet cavitation and noise
• Uses AirDog FF100-2 fuel filter and WS100 water separator for service

Fitment

• 2001-2010 Chevrolet Silverado and GMC Sierra 2500HD/3500HD with the 6.6L Duramax (LB7, LLY, LBZ and LMM)

Product Details

• Brand: AirDog (PureFlow Technologies)
• Manufacturer Part Number: A7SABC509
• Model: DF-165-5G

Orders typically ship within 24–48 hours of being received, but because of vendor shipping times some orders may take longer. We ship within the United States only (48 contiguous states plus DC).

Shipping Height: 8.1

Shipping Length: 19.5

Shipping Width: 13.3
