Zone Offroad ZONF127F 7in Radius Arm Lift Kit 2023-2025 Ford F-250/F-350 Super Duty Diesel, Fox Shocks

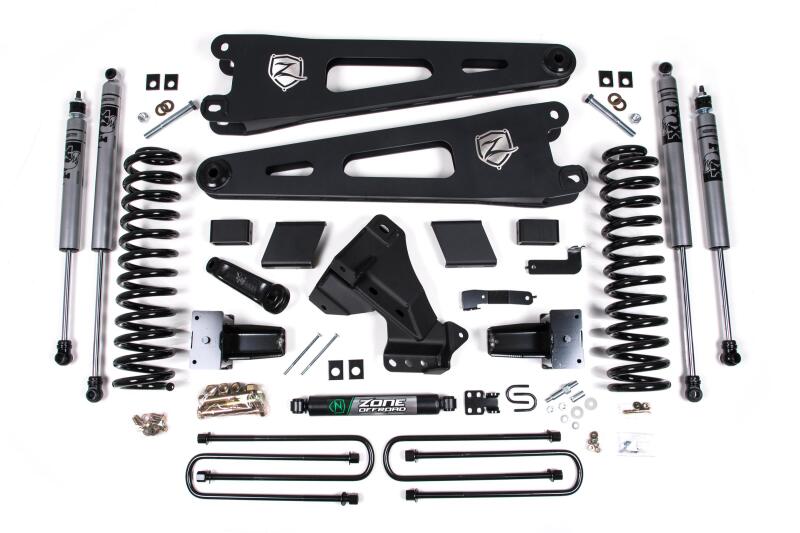

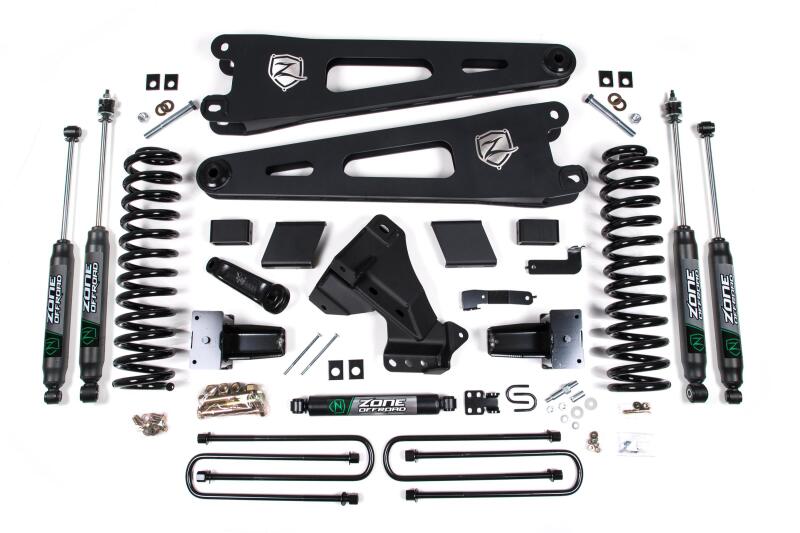

Zone Offroad's 7in radius arm lift kit for 2023-2025 Ford F-250 and F-350 Super Duty 4WD diesel trucks includes everything needed to clear up to 37in tires: fabricated steel radius arms that correct caster, full-length diesel-specific coil springs, a forged pitman arm and a track bar relocation bracket. This version includes Fox shocks and is backed by Factory Protection Plus, a 5-year/60,000-mile drivetrain warranty plus Zone's limited lifetime warranty.

Key Features

• Heavy duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy duty fabricated track bar relocation bracket to recenter the front axle
• Full length specific coil springs which are gas or diesel specific

Fitment

2023-2025 Ford F-250 Super Duty 4WD; 2023-2025 Ford F-350 Super Duty 4WD

Fitment notes:

• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• When adding the Dual Stabilizer option, you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Some trucks with a rear drive-line vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends having this performed prior to installing the lift.
• Does not fit vehicles with radius arm mounted ride height sensors.
• Fits SRW models only.
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
• 37x12.50 tires may require minor trimming.
• Factory wheels fit when paired with factory / original equipment tire size.

Product Details

Front Lift Method: Coil Spring & Radius Arm; Front Lift Height: 7in; Rear Lift Method: Block; Rear Lift Height: 4.5in; Shocks Included: Yes; Lift Height: 6-7.5in. Estimated install time: 4-6 hrs (difficult). Manufacturer Part Number: ZONF127F

Orders typically ship within 24–48 hours of being received, but because of vendor shipping times some orders may take longer. We ship within the United States only (48 contiguous states plus DC).
