Turbosmart TS-2 6466B Turbo V-Band 0.82 A/R Internal WG Water Cooled
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$2,663.99
New
I acknowledge a $0 Core Charge will be added to my order. Core Refunds are issued after the eligible core is returned and approved. This $0.00 fee will be added to your cart.
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65
WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer and/or reproductive harm. For more information, visit
www.P65Warnings.ca.gov.

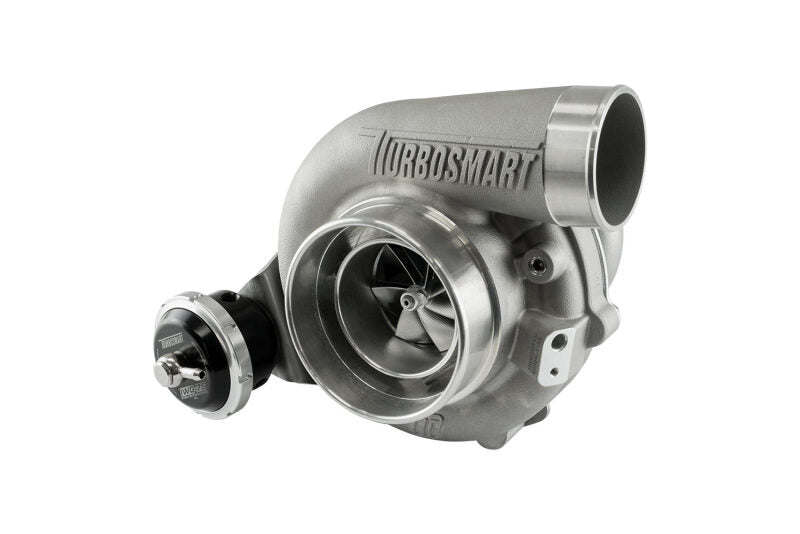

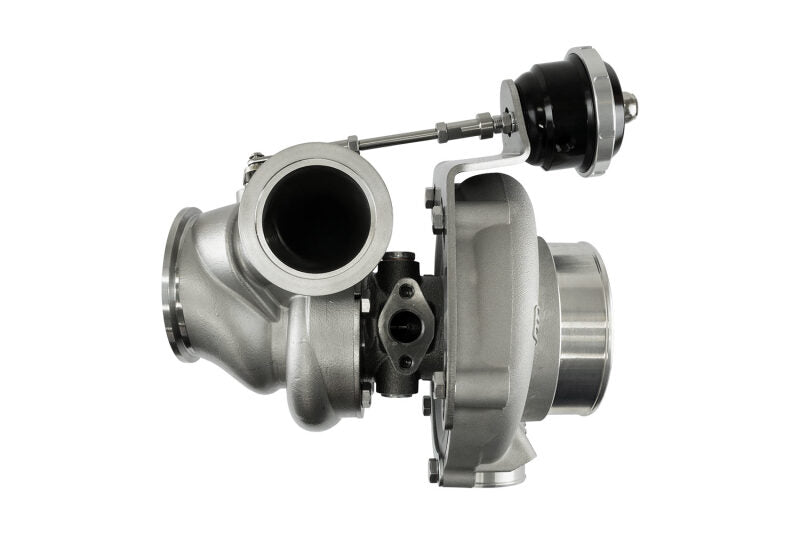

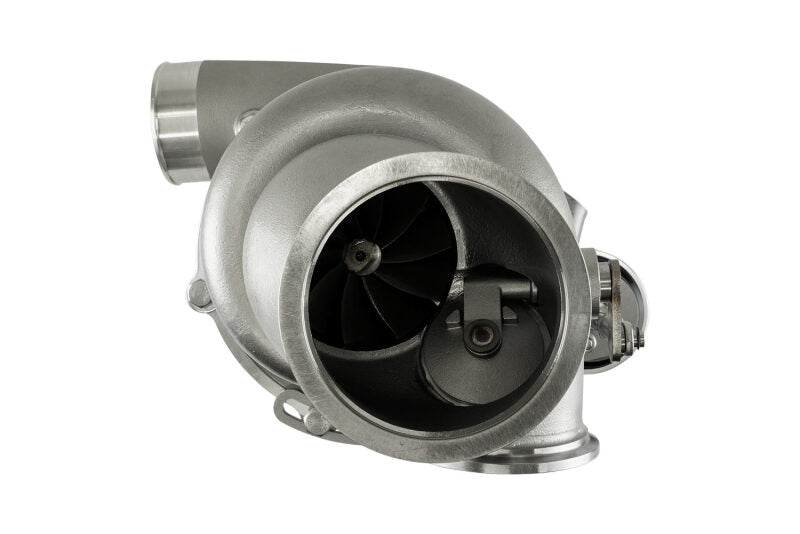

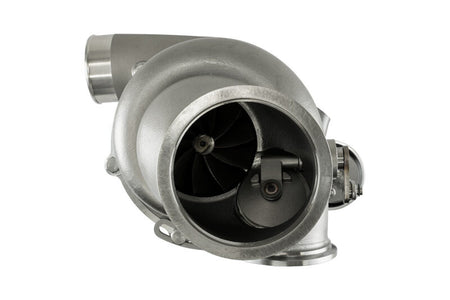

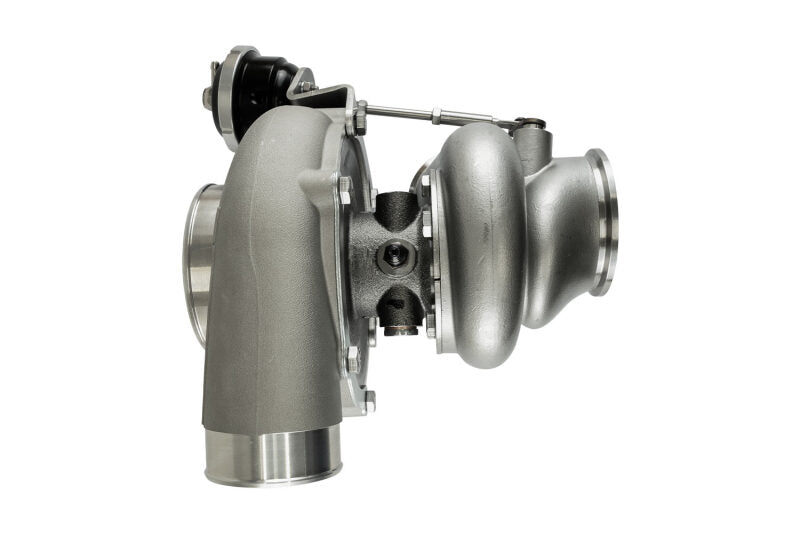

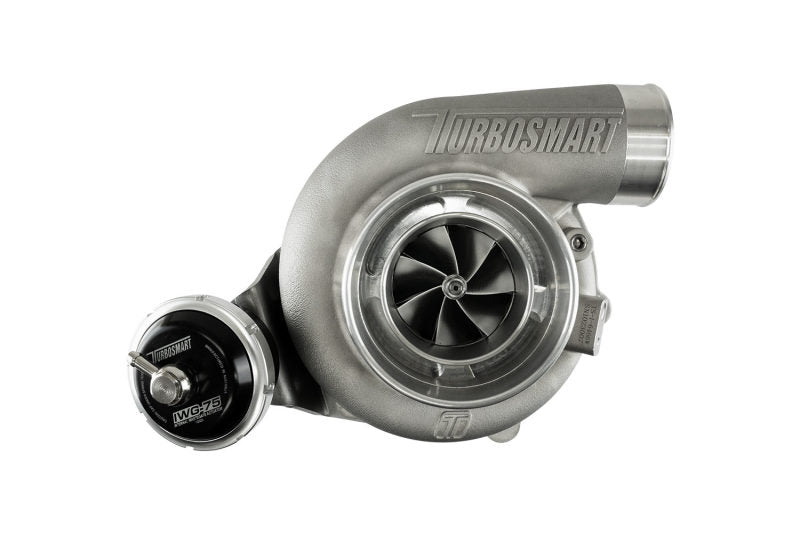

The Turbosmart TS-2 6466 is a water- and oil-cooled B-frame ball bearing turbocharger with a V-Band turbine inlet, 0.82 A/R turbine housing and an internal wastegate (14 psi actuator). Turbosmart designed the range from a blank sheet around a dual ceramic ball bearing cartridge and low-inertia wheels for fast transient response.
Key Features
- Internally wastegated turbine housing with 14 psi actuator
- TS-2 water-cooled center housing (M14x1.5 to -6AN water feed)
- Proprietary dual ceramic ball bearing system for low rotating mass and fast transient response
- 7+7 splitter-blade compressor wheel machined from 2618-T6 forged billet aluminum
- Inconel turbine wheel for extreme exhaust gas temperatures
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminum compressor cover with anti-surge inlet, speed sensor provision and boost reference ports
- Cast iron center housing with integrated compressor backplate
- VSR speed balanced

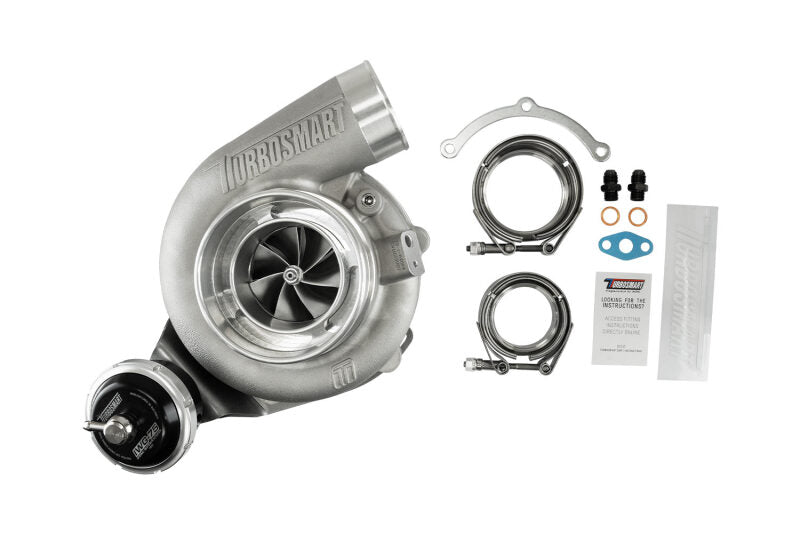

- Supplied with weld flanges, V-band clamps, gaskets and oil feed and drain fittings
Product Details
- Series: TS-2 (oil and water cooled)
- Frame: B-frame
- Turbine inlet: V-Band (2.25 in inlet flange)
- Turbine A/R: 0.82
- Wastegate: Internal (14 psi)
- Compressor inducer / exducer: 64.5 mm / 82 mm
- Turbine exducer: 66 mm
- Horsepower rating: 825-955 HP
- Weight: 6.06 kg (13.4 lb)
- Compressor inlet: 4 in
- Compressor outlet: 2.5 in
- Turbine outlet: 3 in V-band
- Oil fittings: -4AN feed / -8AN drain
- Oil drain bolt spacing: 38.1 mm
- Manufacturer Part Number: TS-2-6466B-VB082I
- Brand: Turbosmart
Not legal for sale or use in California on pollution-controlled vehicles.
Shipping Height: 10.2
Shipping Length: 12.2
Shipping Width: 11.8
