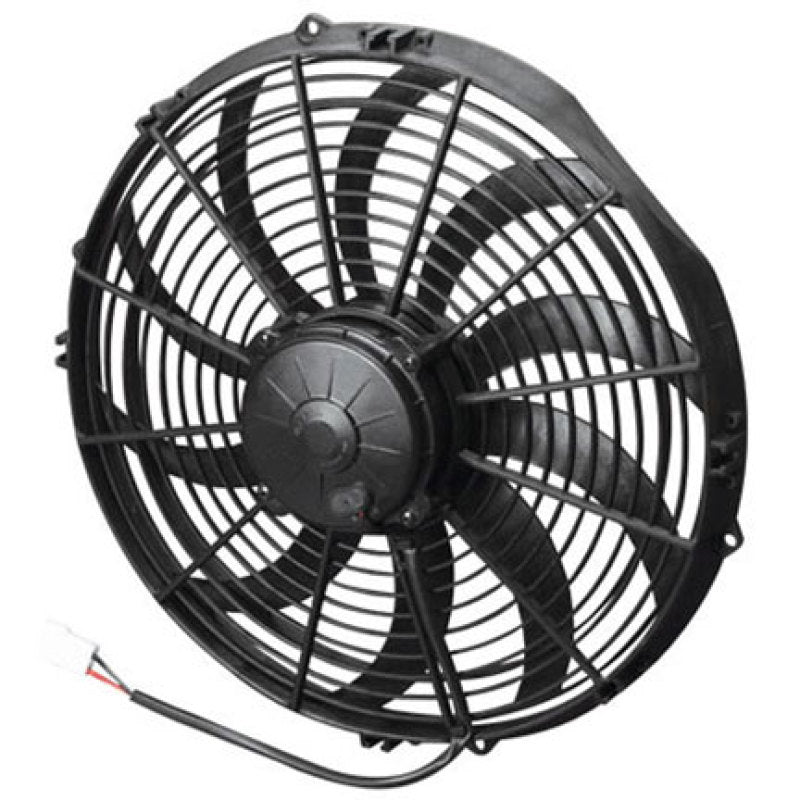

SPAL 14in High Performance Electric Cooling Fan Pusher Curved 1810 CFM 12V
Regular price
$243.75
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
SPAL's 14 in. High Performance axial fan is a 12-volt pusher unit for radiator, oil cooler, transmission cooler and A/C condenser cooling. The High Performance series uses a deeper shroud and a heavier motor than SPAL's Low and Medium Profile fans, and is the line SPAL builds for demanding street and competition cooling.
Key Features
- SPAL-published airflow of 1810 CFM in free air
- Curved blade design
- Motor sealed to IP68 for water and dust resistance
- Each fan individually balanced during assembly
- Molded plastic shroud and blades, black
- Built in Italy by SPAL Automotive
Airflow and Electrical
SPAL publishes 1810 CFM (3,075 m3/h) for this fan along with a 20.3 amp draw, measured in free air at zero static pressure. Note that SPAL rates its 12-volt fans on a 13 volt DC test bench, which is close to a running charging system but higher than a 12 volt battery at rest. Peak current on SPAL's published curve reaches 20.6 amps, so size the relay, fuse and wiring to that figure rather than the nominal draw. Airflow through an actual radiator core will be lower than the free-air figure, so allow margin when sizing a fan to a cooling system.
Fitment
Universal. This fan is not built for one specific year, make or model. It mounts to a radiator or cooler core with SPAL universal brackets, mounting pins or a shroud, so measure your available core area and depth before ordering.
Product Details
- Manufacturer Part Number: 30102056
- SPAL Model: VA08-AP71/LL-53S
- Fan Diameter: 14 in.
- Airflow Direction: Pusher
- Blade Style: Curved
- Series: High Performance
- Voltage: 12V nominal
- Airflow: 1810 CFM free air (SPAL, 13V test voltage)
- Current Draw: 20.3 A free air (SPAL, 13V test voltage)
- Peak Current on Published Curve: 20.6 A
- Overall Height: 15.04 in.
- Overall Width: 14.45 in.
- Overall Depth: 3.47 in.
- Sold individually
