S&S Diesel DKT20049 CP4 to DCR Pump Conversion Kit 11-25 Ford 6.7L Power Stroke

SKU: DKT20049
Backordered – call for lead time
$4,266.67

Have a question about this part? We'll answer it.

Shipping PolicyRMAs and Core ReturnsQuestions? Call (503) 235-1947

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

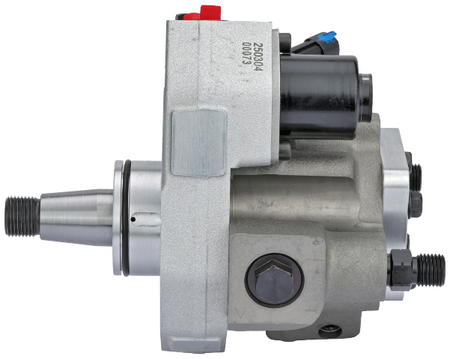

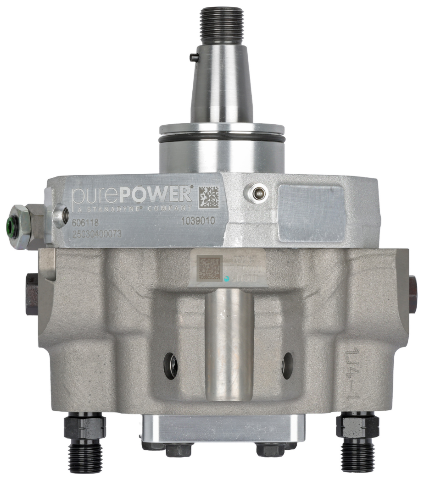

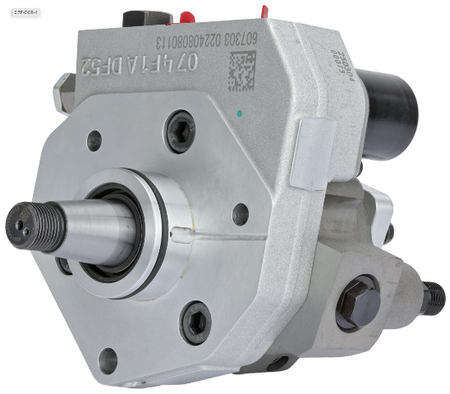

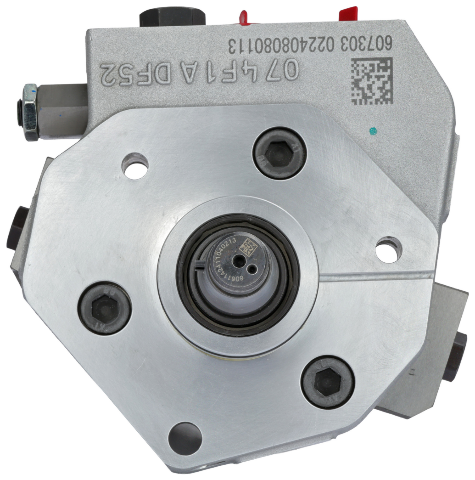

This kit swaps the Bosch CP4.2 high-pressure pump in a 6.7L Power Stroke for the S&S Diesel Motorsport DCR pump, a two-piston design engineered with PurePower Technologies, the aftermarket division of Stanadyne. It installs as a plug-and-play replacement with OE fit and function, so the factory calibration stays untouched, and it moves 1,250 mm3 per revolution, about 25% more than the CP4.2 it replaces.

Key Features

  • Two-piston DCR pump developed by S&S with PurePower Technologies, the aftermarket division of Stanadyne
  • 1,250 mm3 per revolution displacement, 25% more than the factory CP4.2
  • No ECU calibration required; OE fit and function
  • Patented eccentric drive pumping technology with pressure-lubricated cam and bushings
  • Corrosion-resistant inlet metering valve
  • Compatible with biofuel and low-lubricity fuel
  • CARB compliant, Executive Order D-756-7
  • SEMA certified emissions compliant, SC-SDM01-0034
  • 2011-2016 trucks require a new vacuum pump gasket, part 6.7F-VAC-GASKET, sold separately
  • Timing instructions must be followed during installation

Fitment

  • 2011-2025 Ford F-250, F-350, F-450 and F-550 Super Duty, 6.7L Power Stroke
  • 2016-2025 Ford F-650 and F-750, 6.7L Power Stroke
  • Developed for the Ford 6.7L Power Stroke only; S&S has not validated it on other platforms
  • Not compatible with, and not needed alongside, the CP4 Disaster Prevention Kit

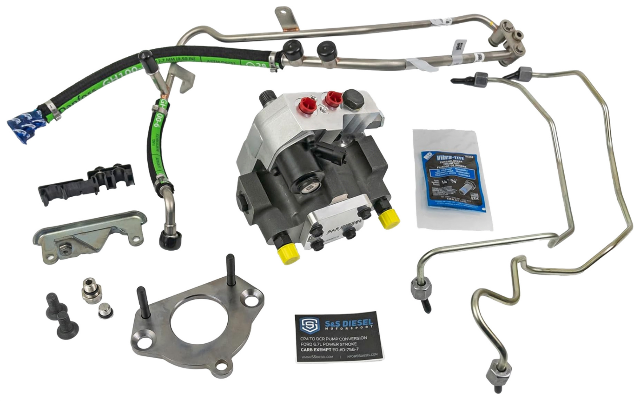

What's Included

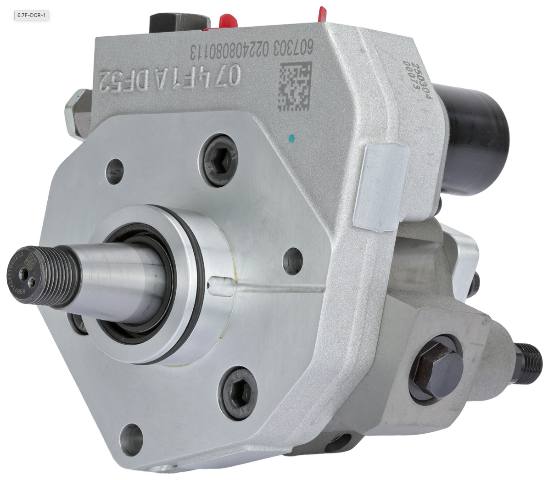

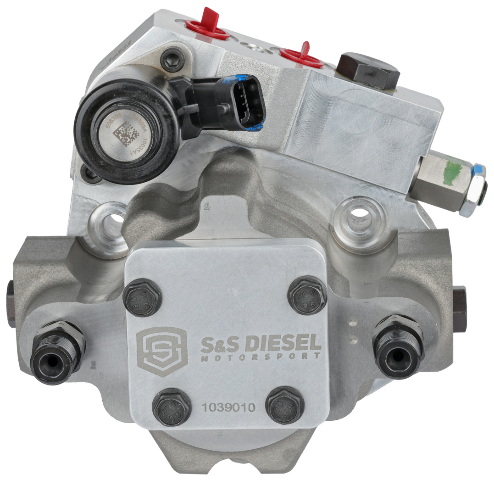

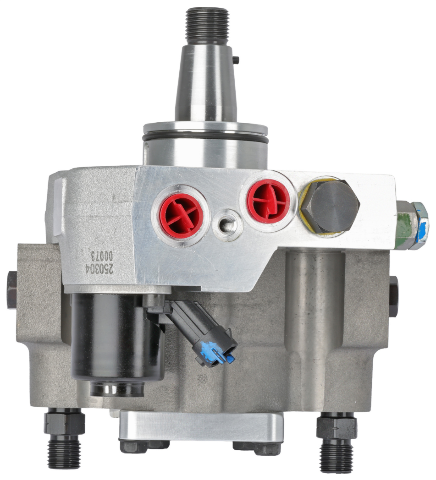

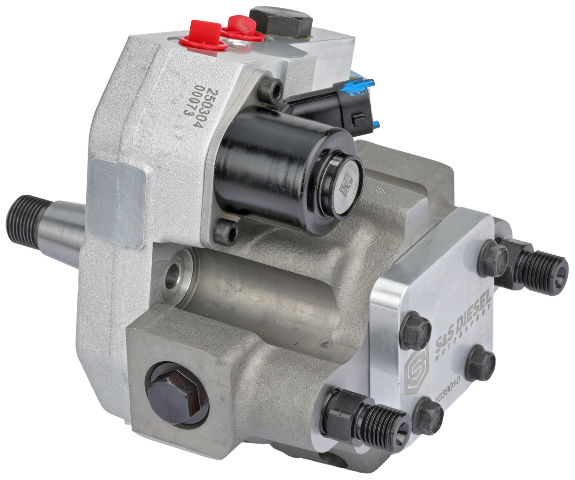

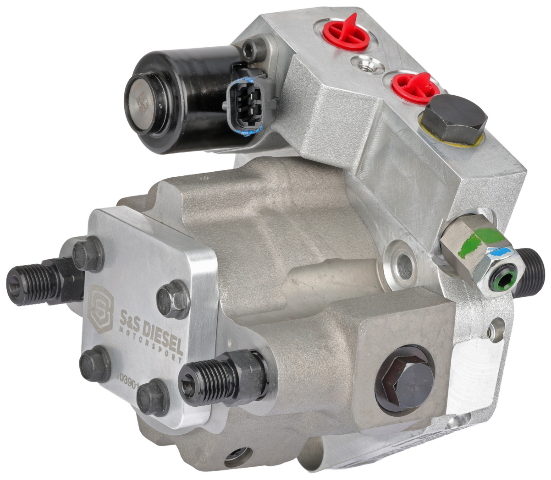

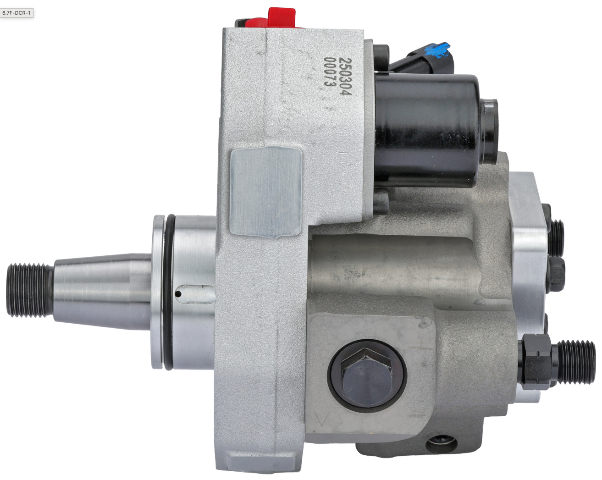

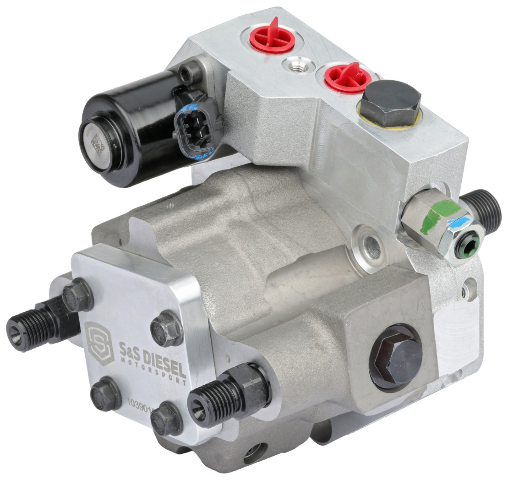

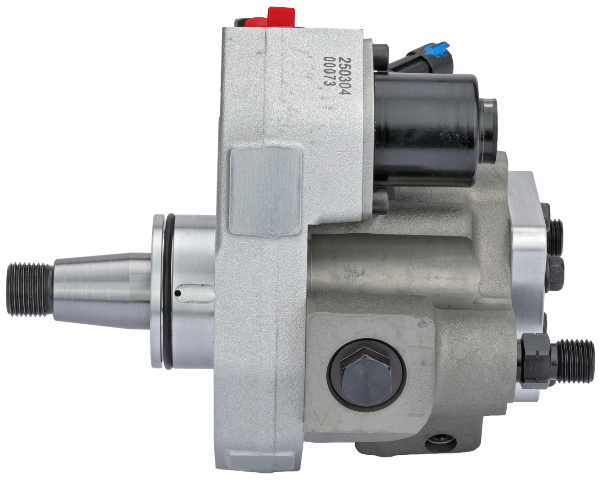

  • S&S DCR pump conversion assembly
  • Two high-pressure fuel lines
  • Low-pressure fuel supply and return line
  • Adapter plates and mounting bolts

Product Details

  • Brand: S&S Diesel Motorsport
  • Manufacturer Part Number: 6.7F-DCR-1
  • Cross reference: Alliant Power item DKT20049
  • Gross weight: 18.4 lb
  • Country of origin: USA

Ford F-250-F750 6.7L PowerStroke (2011-2025)

6.7DCR, 67DCR, 67FDCR1
