Rugged Ridge XHD Modular Snorkel Kit w/ Pre-Filter, Jeep Wrangler 2.8L Diesel
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$1,019.99
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65
WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer and/or reproductive harm. For more information, visit
www.P65Warnings.ca.gov.

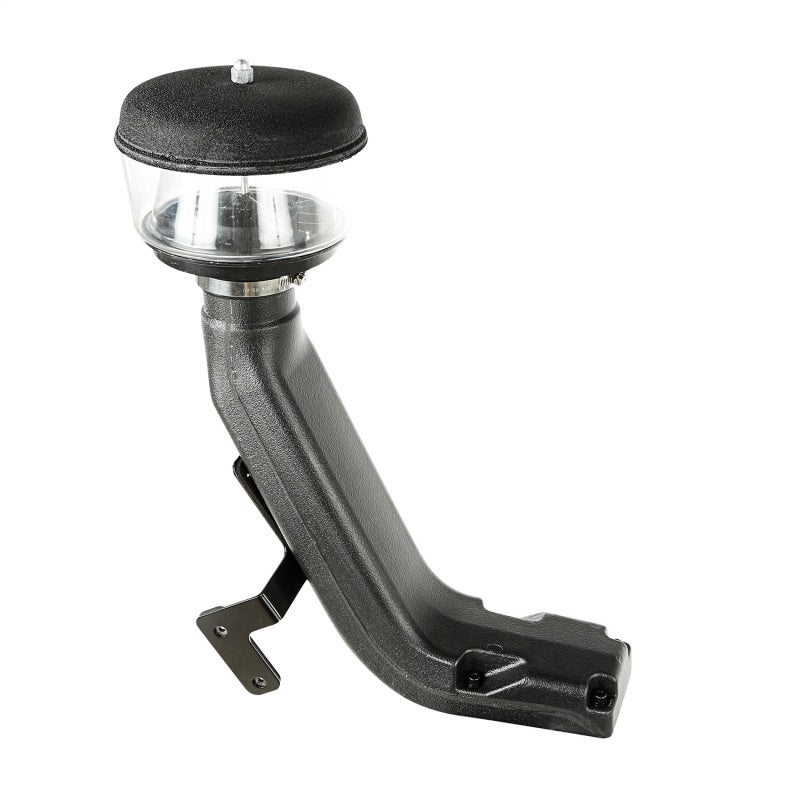

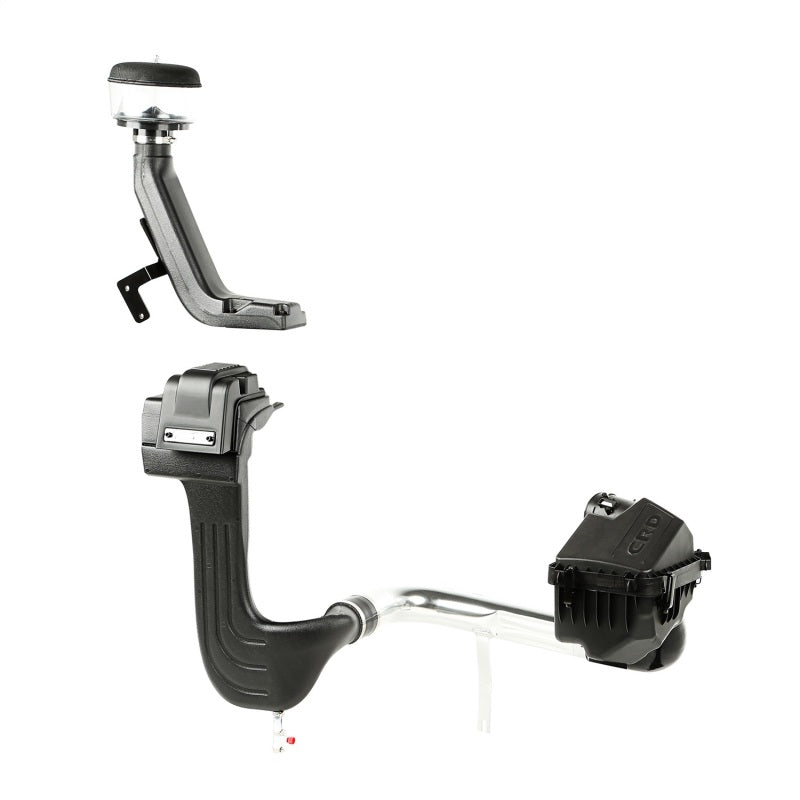

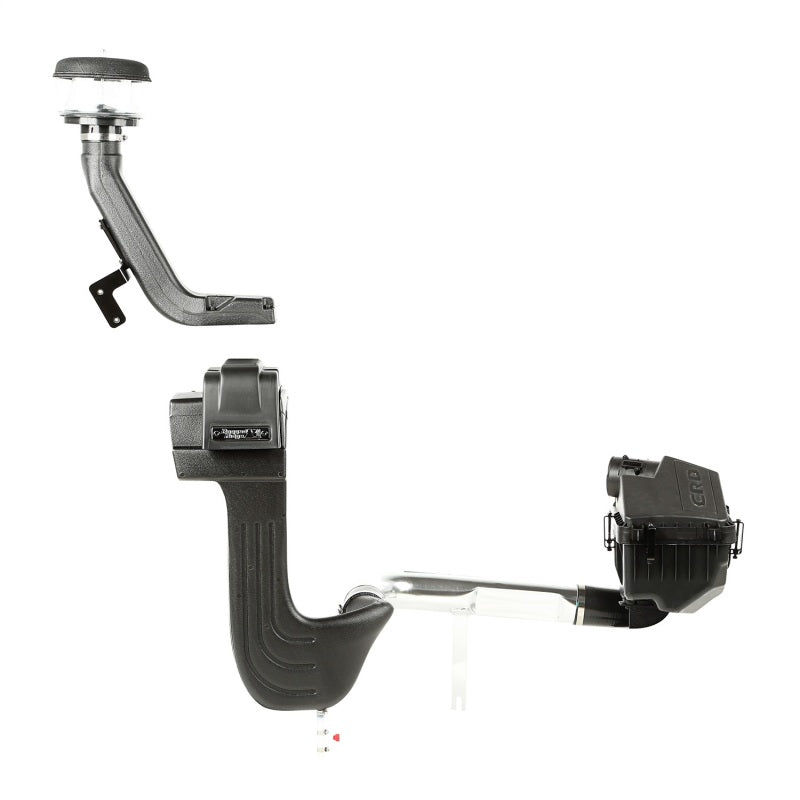

Rugged Ridge builds this XHD Snorkel kit as the most complete version of the modular system for the 2.8L diesel Jeep Wrangler JK. It arrives with three intakes: the standard low mount, the ram high mount, and the clear high mount pre-filter intake. The pre-filter uses a cyclonic design that spins heavier dust out of the airstream before it ever reaches the filter, which is the reason to choose this kit over the low or low/high configurations. Like every kit in the XHD family, it fits left hand drive Jeeps only.
Key Features
- Includes the low mount intake, ram high mount intake, and clear pre-filter intake
- Cyclonic pre-filter adds a stage of dust separation ahead of the air filter
- Air is drawn through an internal duct exiting below the windshield rather than inside the fender, reducing hydro-lock risk
- High mount pre-filter position feeds cooler, cleaner air to the intake system

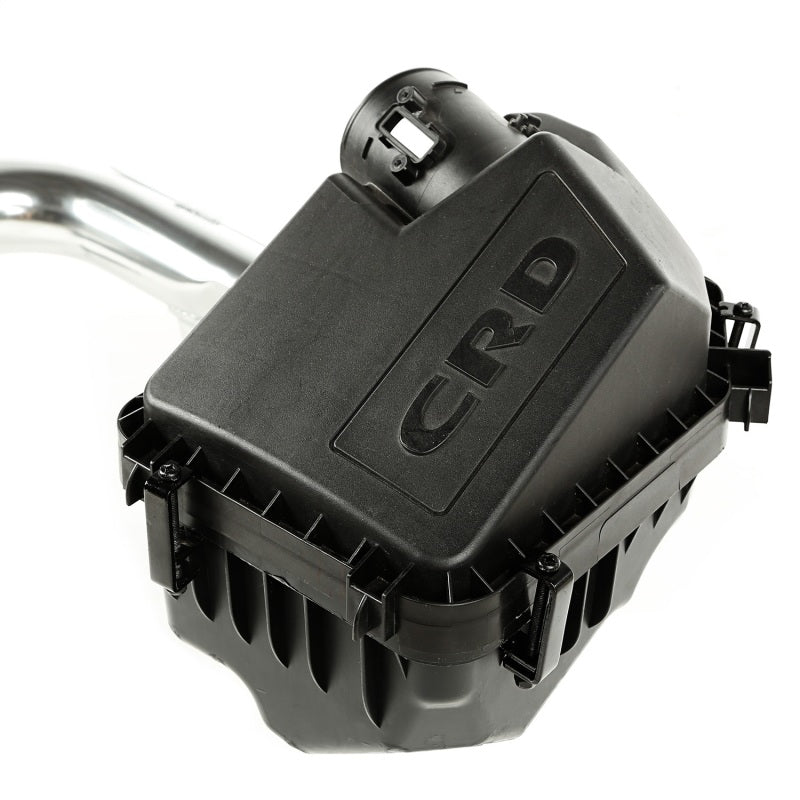

- Air travels through a mandrel-bent aluminum air tube into a sealed lower air box
- Manual 3/8 in. drain valve and clear drain hose let trapped water be expelled from the snorkel body
- Clears most aftermarket lower windshield light mounting tabs
- Most complete XHD configuration for the 2.8L diesel JK, with no intake accessories left to add
- Pairs with other Rugged Ridge accessories including the Windshield Mount Light Bar, Windshield Auxiliary Light Mounting Brackets, Sherpa Roof Rack and Exo-Top system
- Vehicle can be returned to stock configuration using the included cowl remount bracket
Fitment
Fits left-hand-drive Jeeps only. Cannot be installed on RHD vehicles. For the 2.8L CRD turbo diesel JK Wrangler.
- 2007-2018 Jeep Wrangler JK, 2-door and 4-door Unlimited, with the 2.8L turbo diesel inline-four
- Left hand drive only. Rugged Ridge's installation instructions state the snorkel system cannot be installed on RHD vehicles
- Diesel application. Separate Rugged Ridge XHD snorkel part numbers cover 3.6L and 3.8L gasoline JK Wranglers
Product Details
- Brand: Rugged Ridge (a division of Omix-ADA)
- Manufacturer Part Number: 17756.24
- Configuration: Low mount, ram high mount and clear pre-filter intake included
- Patent No. 8,960,347
- Warranty: 5 year limited warranty
Installation: Rugged Ridge quotes 4 or more hours of install time and notes that drilling, cutting and modification of the vehicle are required. Read the installation instructions completely before starting.
California residents: Proposition 65 warning applies.
Shipping Height: 12.4
Shipping Length: 27.6
Shipping Width: 12.9
