Rugged Ridge XHD Modular Snorkel Kit Low Mount, Jeep Wrangler 2.8L Diesel
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$719.99
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Emissions (CARB)
Not legal for sale or use on pollution-controlled motor vehicles in California or other states that adopt California emissions standards. For off-road and competition use only.
California Proposition 65
WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer and/or reproductive harm. For more information, visit
www.P65Warnings.ca.gov.

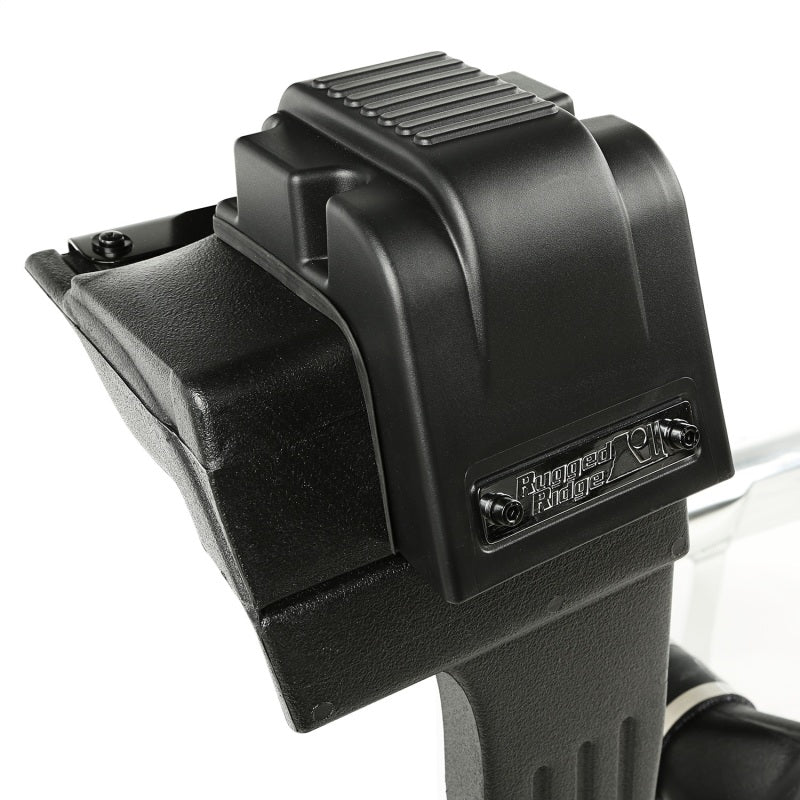

The Rugged Ridge XHD Low Mount Snorkel Kit moves the factory air intake on the 2.8L diesel Jeep Wrangler JK out of the fender and up to a duct just below the windshield. Pulling air from that higher, cooler position cuts down on the dust reaching the air filter and reduces the chance of hydro-locking the engine in deep water. This is the low mount configuration of the XHD Modular Snorkel and, like every kit in the XHD family, it is built for left hand drive Jeeps only.

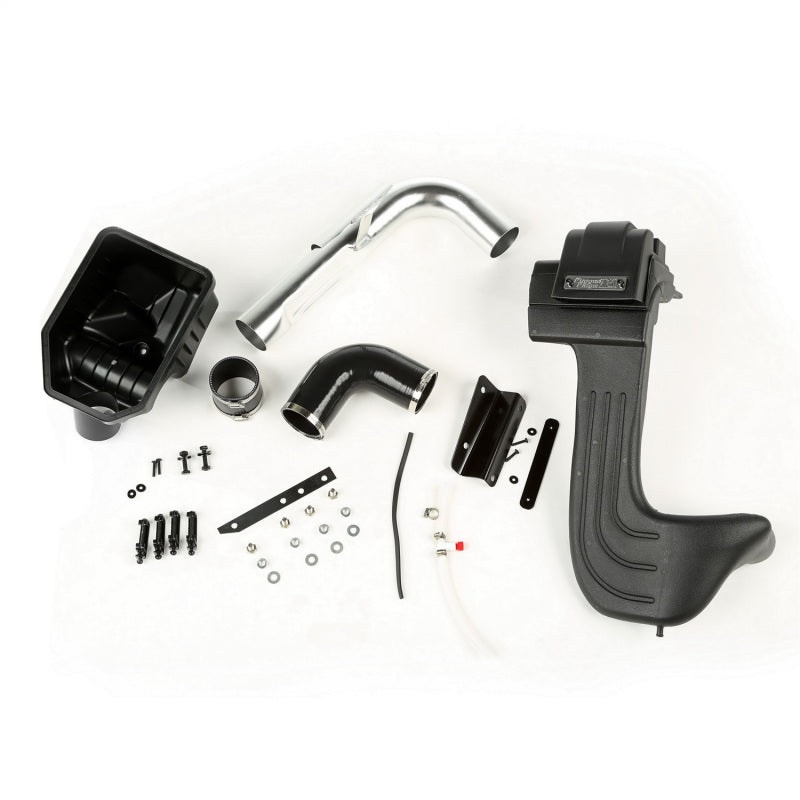

Key Features
- Low mount intake developed specifically for the 2.8L diesel JK Wrangler
- Internal duct system relocates the intake from the fender to below the windshield

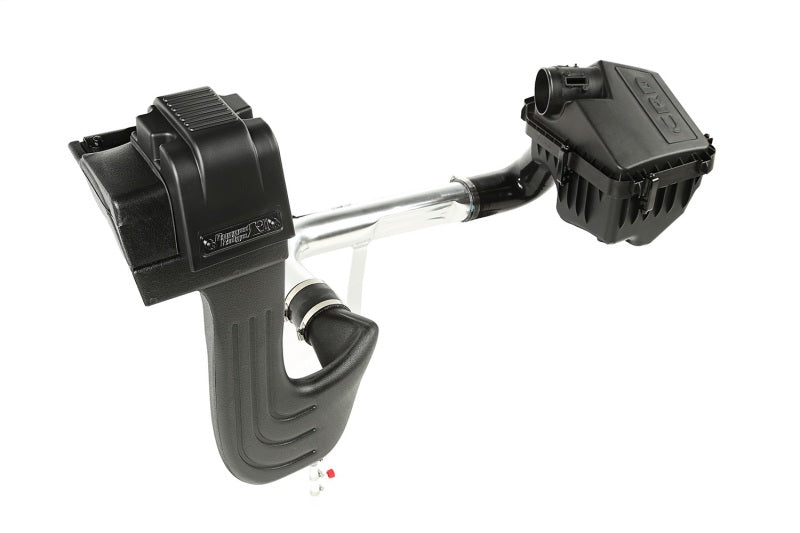

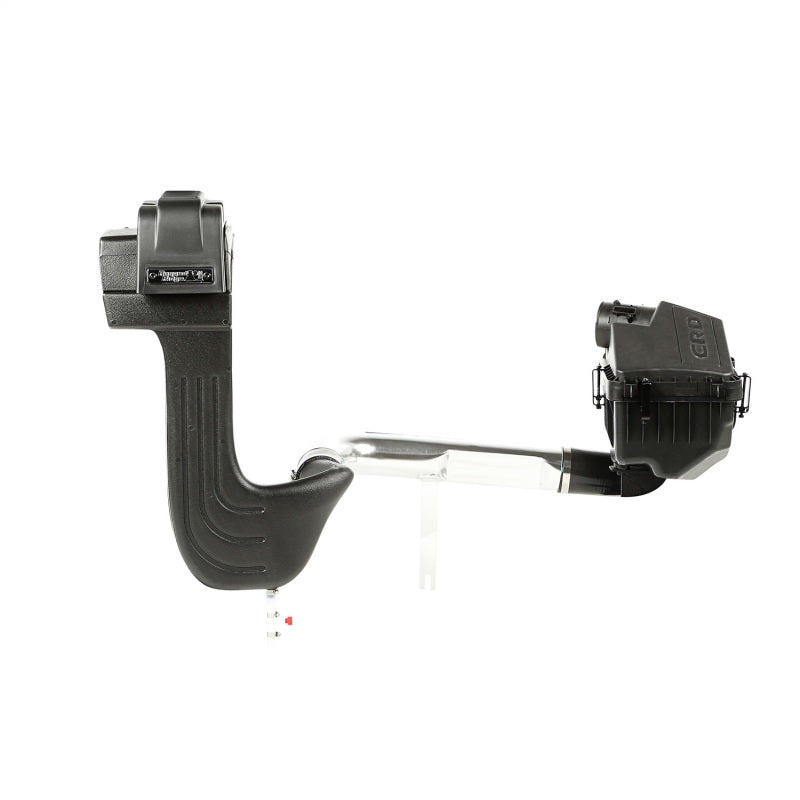

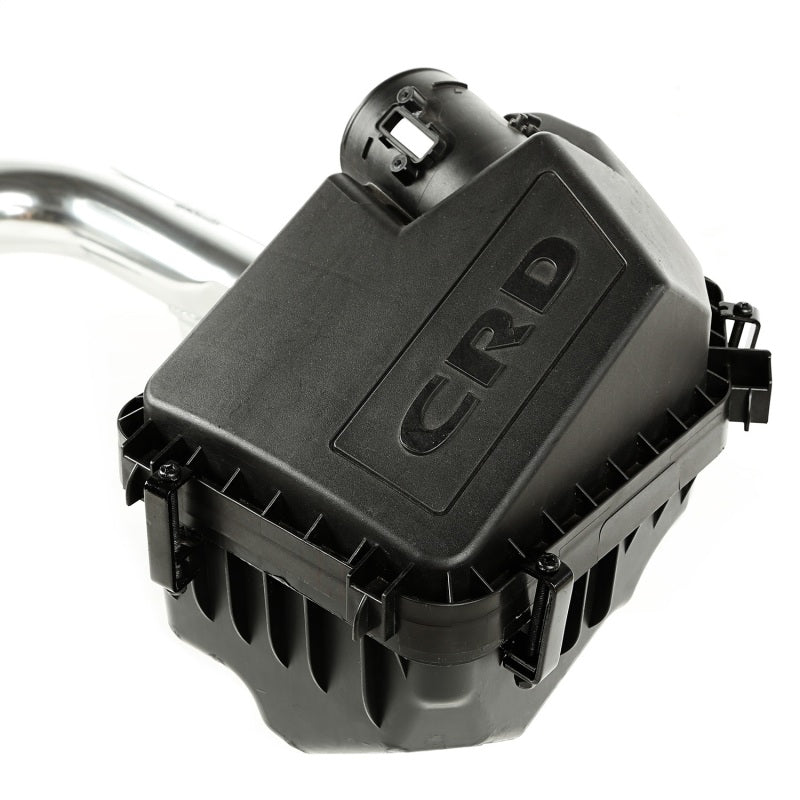

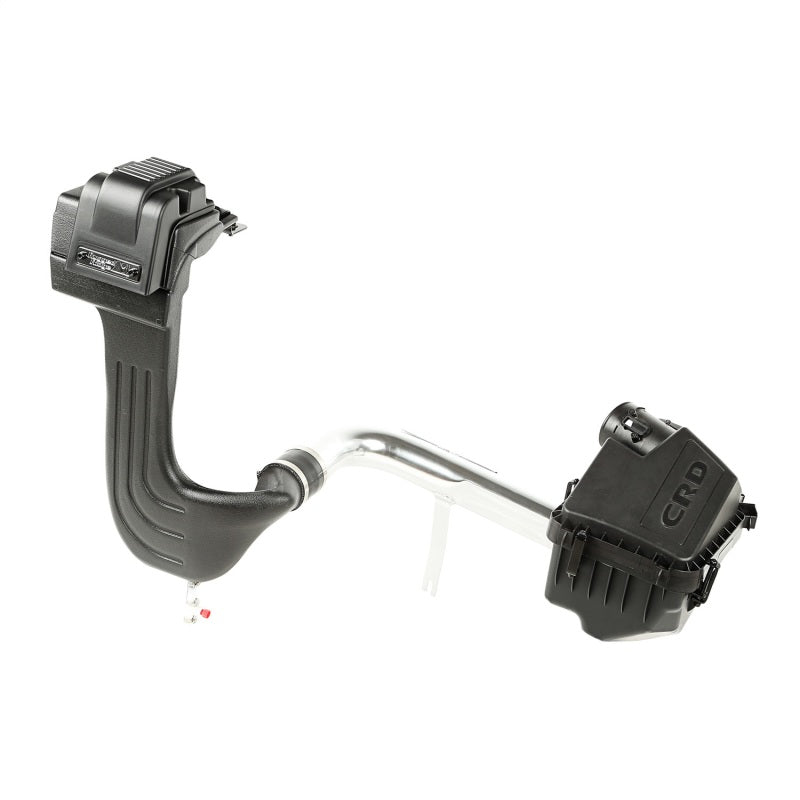

- Air travels through a mandrel-bent aluminum air tube into a sealed lower air box
- Manual 3/8 in. drain valve and clear drain hose let trapped water be expelled from the snorkel body
- Modular platform upgrades later: Rugged Ridge sells the XHD High Mount Snorkel Extension (17756.07) and the XHD Snorkel Pre-Filter (17756.09) as separate parts, which build this kit up to the low/high mount and pre-filter configurations
- Engineered so the windshield still folds
- Leaves room for most aftermarket lower windshield light mounting tabs
- Designed to work alongside other Rugged Ridge parts including the Windshield Mount Light Bar, Windshield Auxiliary Light Mounting Brackets, Sherpa Roof Rack and Exo-Top system
- Vehicle can be returned to stock configuration using the included cowl remount bracket
Fitment
Fits left-hand-drive Jeeps only. Cannot be installed on RHD vehicles. For the 2.8L CRD turbo diesel JK Wrangler.
- 2007-2018 Jeep Wrangler JK, 2-door and 4-door Unlimited, with the 2.8L turbo diesel inline-four
- Left hand drive only. Rugged Ridge's installation instructions state the snorkel system cannot be installed on RHD vehicles
- Diesel application. Rugged Ridge catalogs separate XHD snorkel part numbers for 3.6L and 3.8L gasoline JK Wranglers
Product Details
- Brand: Rugged Ridge (a division of Omix-ADA)
- Manufacturer Part Number: 17756.04
- Configuration: Low mount intake
- Patent No. 8,960,347
- Warranty: 5 year limited warranty
Installation: Rugged Ridge lists this kit at under one hour of install time. The kit mounts with modification to the internal fender flange, and Rugged Ridge's installation notes state that drilling, cutting and modification of the vehicle are required, so read the supplied instructions in full before starting.
California residents: Proposition 65 warning applies.
Shipping Height: 13.0
Shipping Length: 28.0
Shipping Width: 13.0
