Rugged Ridge XHD Modular Snorkel Low/High Mount, Jeep Wrangler 2.8L Diesel
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$839.99
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Emissions (CARB)
Not legal for sale or use on pollution-controlled motor vehicles in California or other states that adopt California emissions standards. For off-road and competition use only.
California Proposition 65
WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer and/or reproductive harm. For more information, visit
www.P65Warnings.ca.gov.

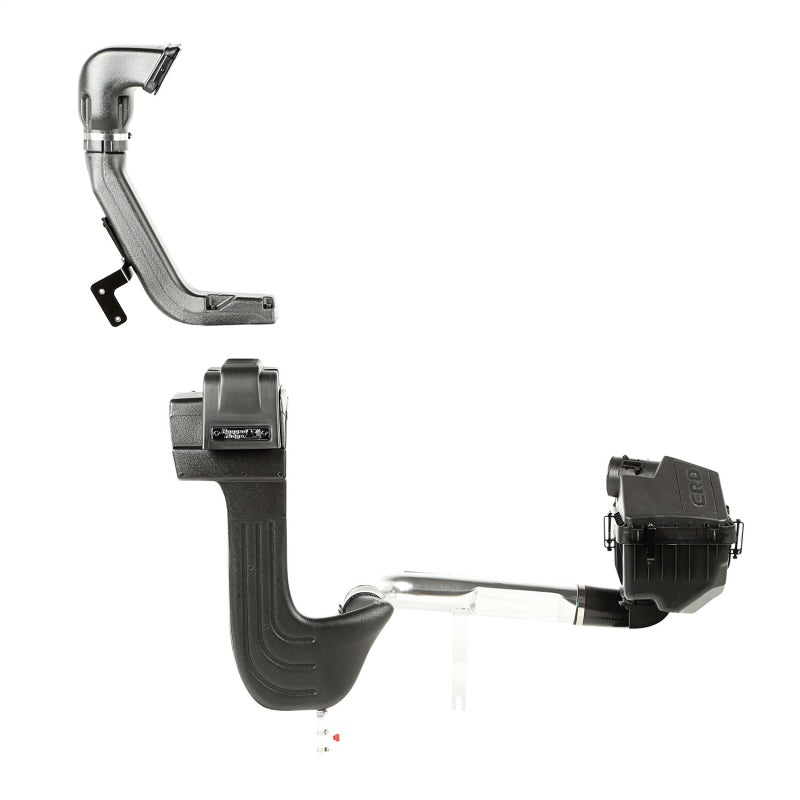

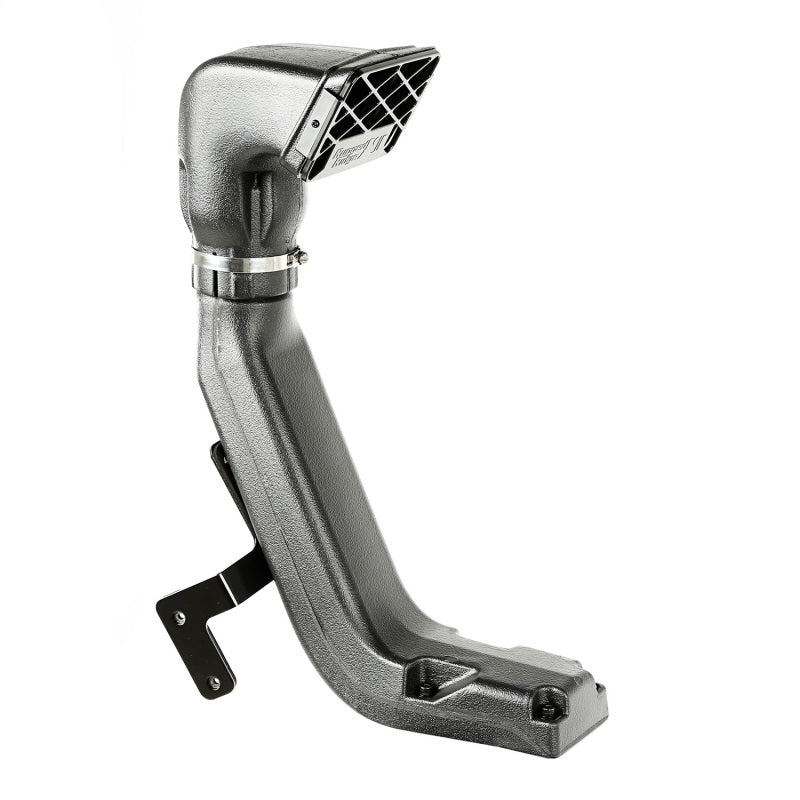

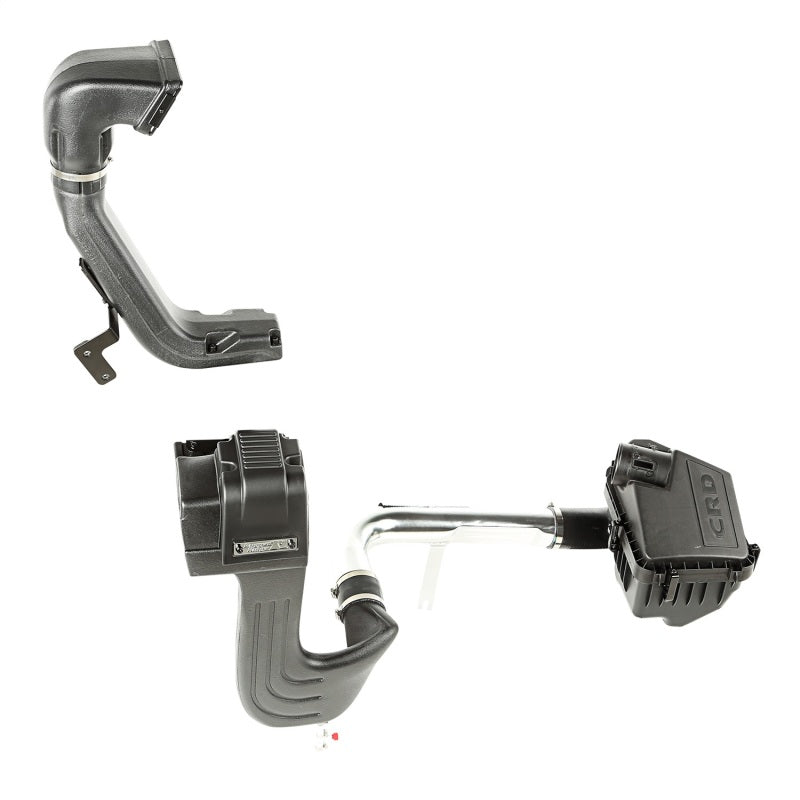

This version of the Rugged Ridge XHD Modular Snorkel ships with two interchangeable intake heights for the 2.8L diesel Jeep Wrangler JK. Run the standard low mount for everyday driving, or swap in the 21 inch high mount ram intake when the trail turns dusty or a water crossing is coming. Both draw air through an internal duct that exits below the windshield instead of inside the fender, which keeps the air filter cleaner and reduces hydro-lock risk. Like every kit in the XHD family, it is built for left hand drive Jeeps only.
Key Features
- Includes both the low mount intake and the 21 inch high mount ram intake
- Intake heights swap without replacing the snorkel body

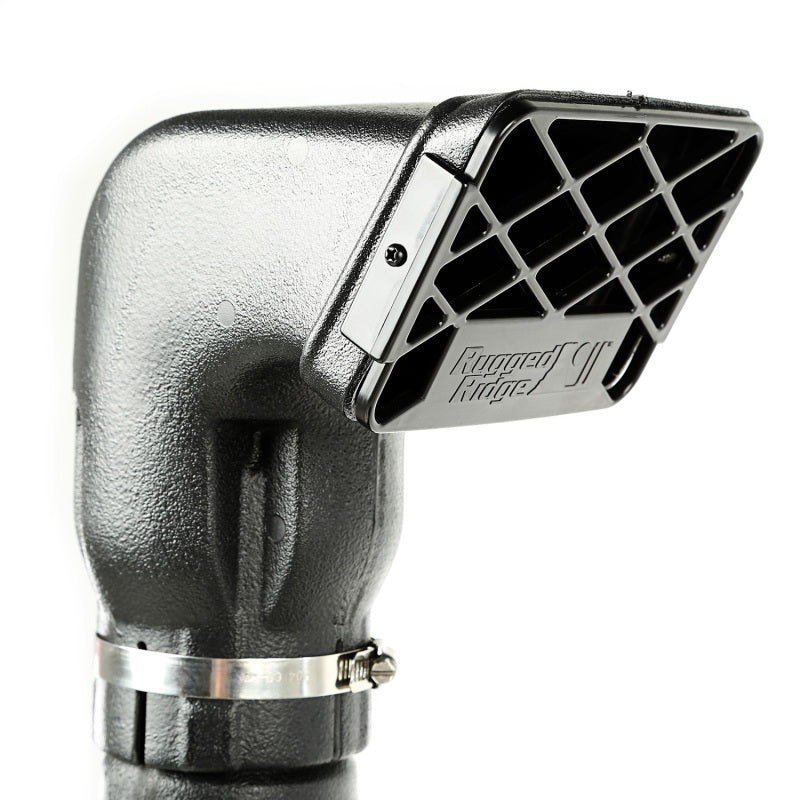

- High mount ram position delivers cooler air and raises the intake above trail dust
- Still clears most aftermarket lower windshield light mounting tabs

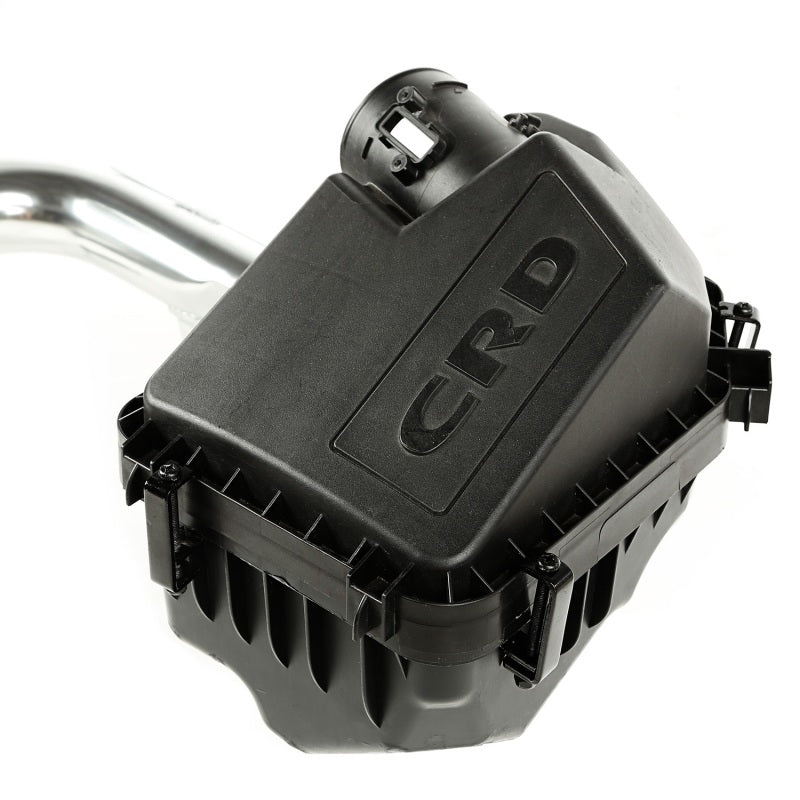

- Air travels through a mandrel-bent aluminum air tube into a sealed lower air box
- Manual 3/8 in. drain valve and clear drain hose let trapped water be expelled from the snorkel body
- Adding the XHD Snorkel Pre-Filter (17756.09) later brings this kit up to the full pre-filter configuration
- Compatible with other Rugged Ridge accessories such as the Windshield Mount Light Bar, Windshield Auxiliary Light Mounting Brackets, Sherpa Roof Rack and Exo-Top system
- Vehicle can be returned to stock configuration using the included cowl remount bracket
Fitment
Fits left-hand-drive Jeeps only. Cannot be installed on RHD vehicles. For the 2.8L CRD turbo diesel JK Wrangler.
- 2007-2018 Jeep Wrangler JK, 2-door and 4-door Unlimited, with the 2.8L turbo diesel inline-four
- Left hand drive only. Rugged Ridge's installation instructions state the snorkel system cannot be installed on RHD vehicles
- Diesel application. Rugged Ridge lists different XHD snorkel part numbers for 3.6L and 3.8L gasoline JK Wranglers
Product Details
- Brand: Rugged Ridge (a division of Omix-ADA)
- Manufacturer Part Number: 17756.23
- Configuration: Low mount intake plus 21 inch high mount ram intake
- Patent Nos. 8,960,347; D687,071; D687,072
- Warranty: 5 year limited warranty
Installation: Rugged Ridge quotes 4 or more hours of install time and states that drilling, cutting and modification of the vehicle are required. Review the installation instructions before beginning the job.
California residents: Proposition 65 warning applies.
Shipping Height: 19.2
Shipping Length: 26.8
Shipping Width: 20.2
