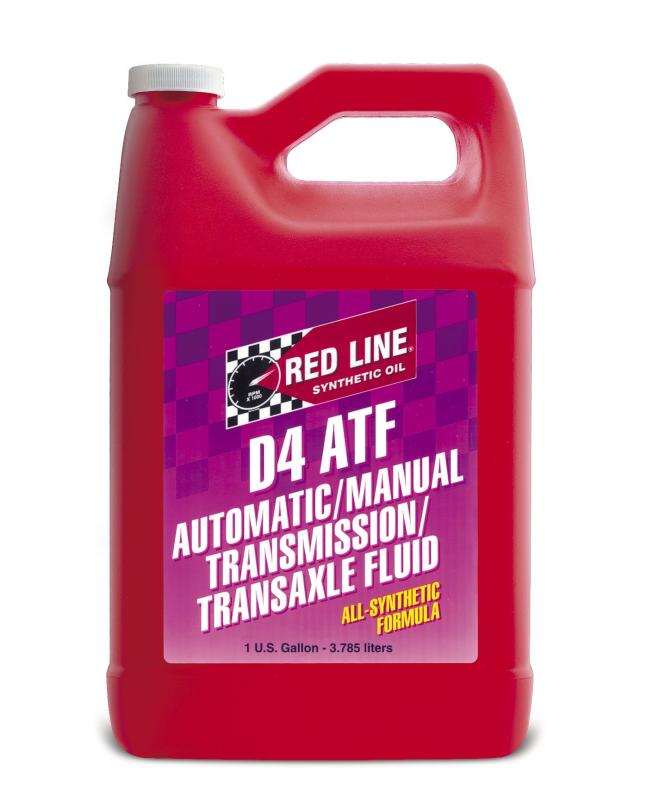

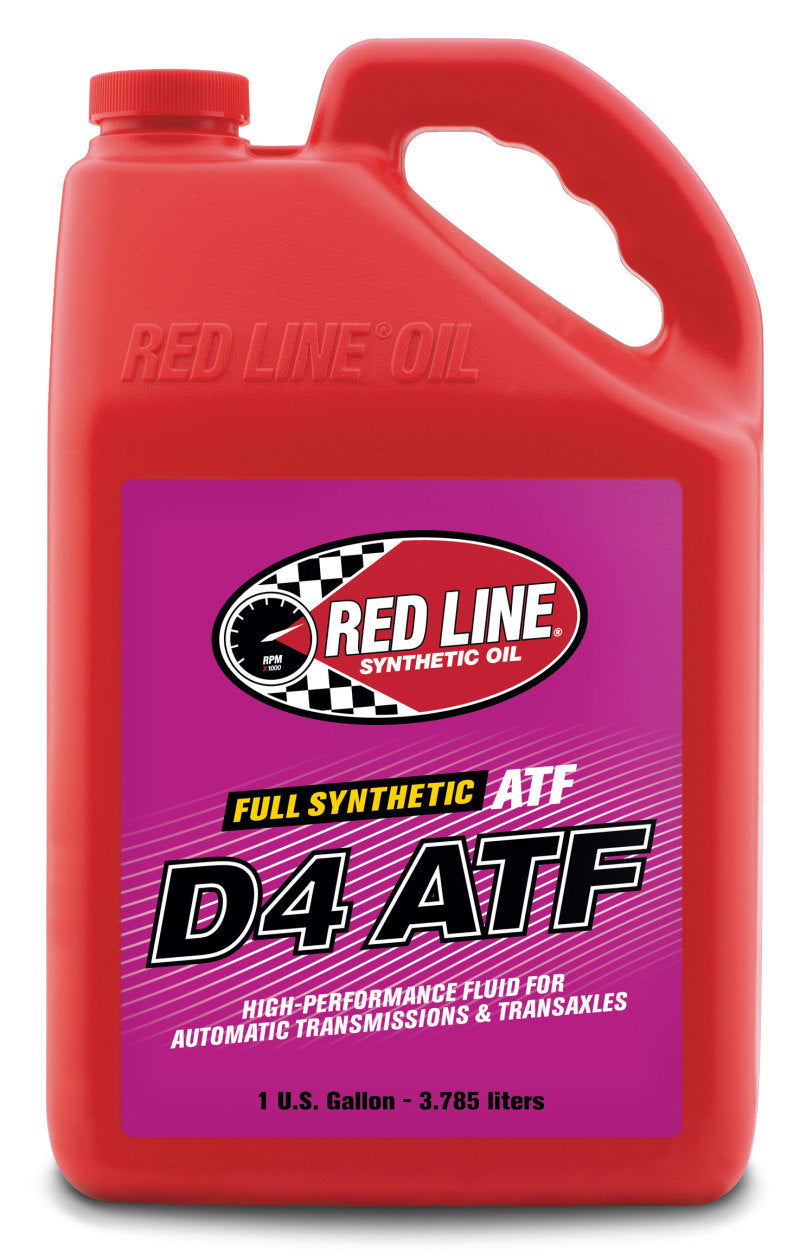

Red Line D4 ATF Automatic Transmission Fluid - 1 Gallon (Case of 4)

Red Line D4 ATF is the most versatile automatic transmission fluid in the range, a full-synthetic Dexron and Mercon style replacement rated 0W20 as a motor oil and 70W80 as a gear oil, with a viscosity index of 188 and a pour point of -76 degrees F. This is the one-gallon jug, a convenient size for a full service on one vehicle. Sold as a case of 4 one-gallon jugs.

Key Features

• Fully synthetic base stocks resist the shearing action that thins a conventional ATF in service
• Very resistant to evaporation even at extreme temperatures
• Reduced oxidation and lower volatility at high temperature
• Allows high-temperature operation without varnishing valves and clutches
• Delivers the frictional characteristics the OEM-style fluid it replaces is built around

Applications

Applications specifying Dexron III, Dexron III H, Dexron II, Ford Mercon or Mercon V, Toyota Type T-III and T-IV, Honda Z-1, Nissan Matic-J, Hyundai, Voith or ZF fluids. D4 also delivers API GL-4 level gear protection, which is why Red Line lists it for manual transmissions and transaxles including the T-5, T-45 and T-56, and for power steering use.

Product Details

• Brand: Red Line Synthetic Oil
• Manufacturer Part Number: 30505
• Product Type: Full Synthetic Automatic Transmission Fluid
• Package Size: 1 Gallon
• Pack Quantity: Case of 4

Orders typically ship within 24–48 hours of being received, but because of vendor shipping times some orders may take longer. We ship within the United States only (48 contiguous states plus DC).

Shipping Height: 9.6

Shipping Length: 14.5

Shipping Width: 12.8
