AirDog

AirDog II-5G DF-165-5G Lift Pump 1998.5-2004 Dodge Ram 5.9L 24V Cummins

SKU: adgA7SABD525 UPC: 813094015252
In stock - 36 items available
$878.00

Have a question about this part? We'll answer it.

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

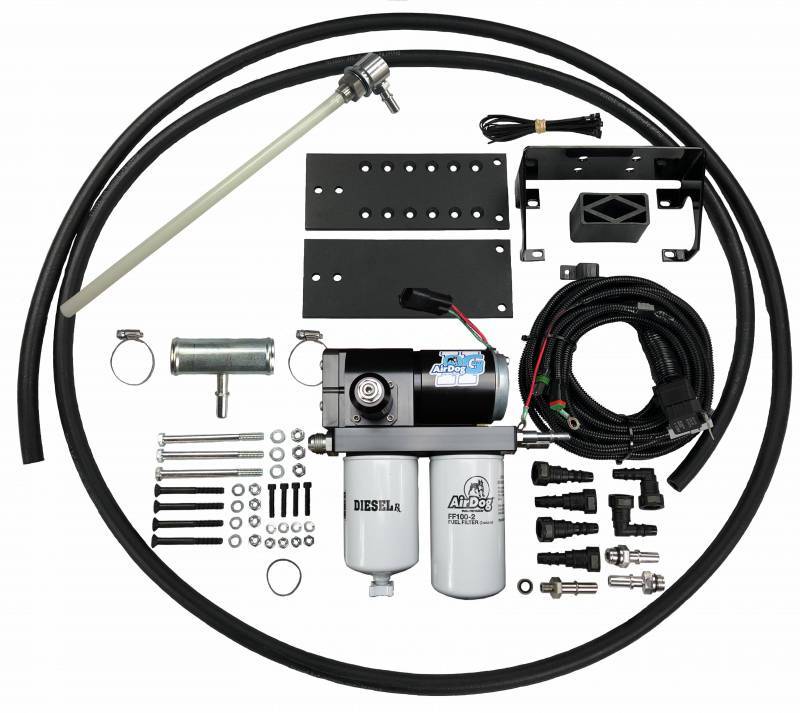

The AirDog II-5G DF-165-5G is a complete fuel air separation system for 1998.5-2004 Dodge Ram 5.9L 24V Cummins trucks. It pairs a 165 GPH gerotor lift pump with AirDog's patented air separation, a water separator and a fuel filter, so the injection system receives clean fuel with the entrained air, vapor and water removed. AirDog rates the 165 GPH version for moderately modified trucks.

Key Features

  • 165 GPH (gallons per hour) flow rate
  • Integrated diaphragm fuel pressure regulator - adjustable and capable of boost compensation
  • Patented air separation plus a water separator and fuel filter
  • Water separator removes 92% of water per SAE J1488 (AirDog specification); 2 micron fuel filtration
  • Demand Flow design recirculates fuel the injection system does not use back through the filter base
  • 12-gauge wiring harness from the battery to the motor; a Metri-Pack 280 connector replaces the previous Deutsch 2-pin, and the remaining connectors are Weather Pack
  • 4G motor design with a four-bearing motor and intermediate shaft
  • Larger porting than earlier AirDog systems to reduce inlet cavitation and noise
  • Uses AirDog FF100-2 fuel filter and WS100 water separator for service

Installation

The pump mounts to the frame rail with the supplied sandwich plate. A Fuel Module Upgrade Kit is installed in the factory fuel basket to draw fuel through a factory-style 1/2" bulkhead fitting, bypassing the factory in-tank lift pump. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing, and the air/vapor return uses the factory 3/8" suction line once the module is modified. Refer to the AirDog installation manual for the complete parts list.

Fitment

  • 1998.5-2004 Dodge Ram with the 5.9L 24V Cummins (VP44 and early CP3 common rail)

Product Details

  • Brand: AirDog (PureFlow Technologies)
  • Manufacturer Part Number: A7SABD525
  • Model: DF-165-5G

Orders typically ship within 24–48 hours of being received, but because of vendor shipping times some orders may take longer. We ship within the United States only (48 contiguous states plus DC).

Shipping Height: 8.0

Shipping Length: 19.4

Shipping Width: 13.4
