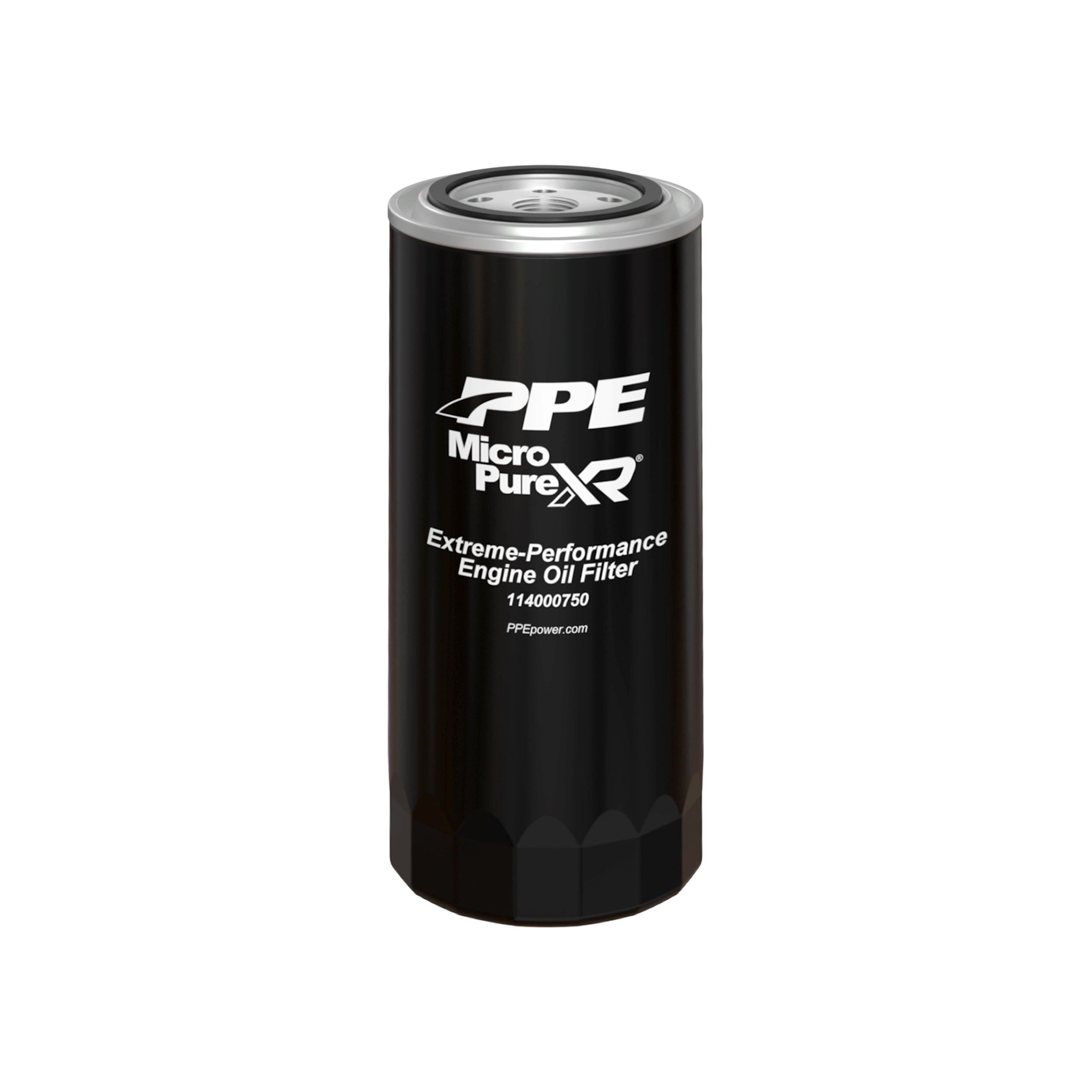

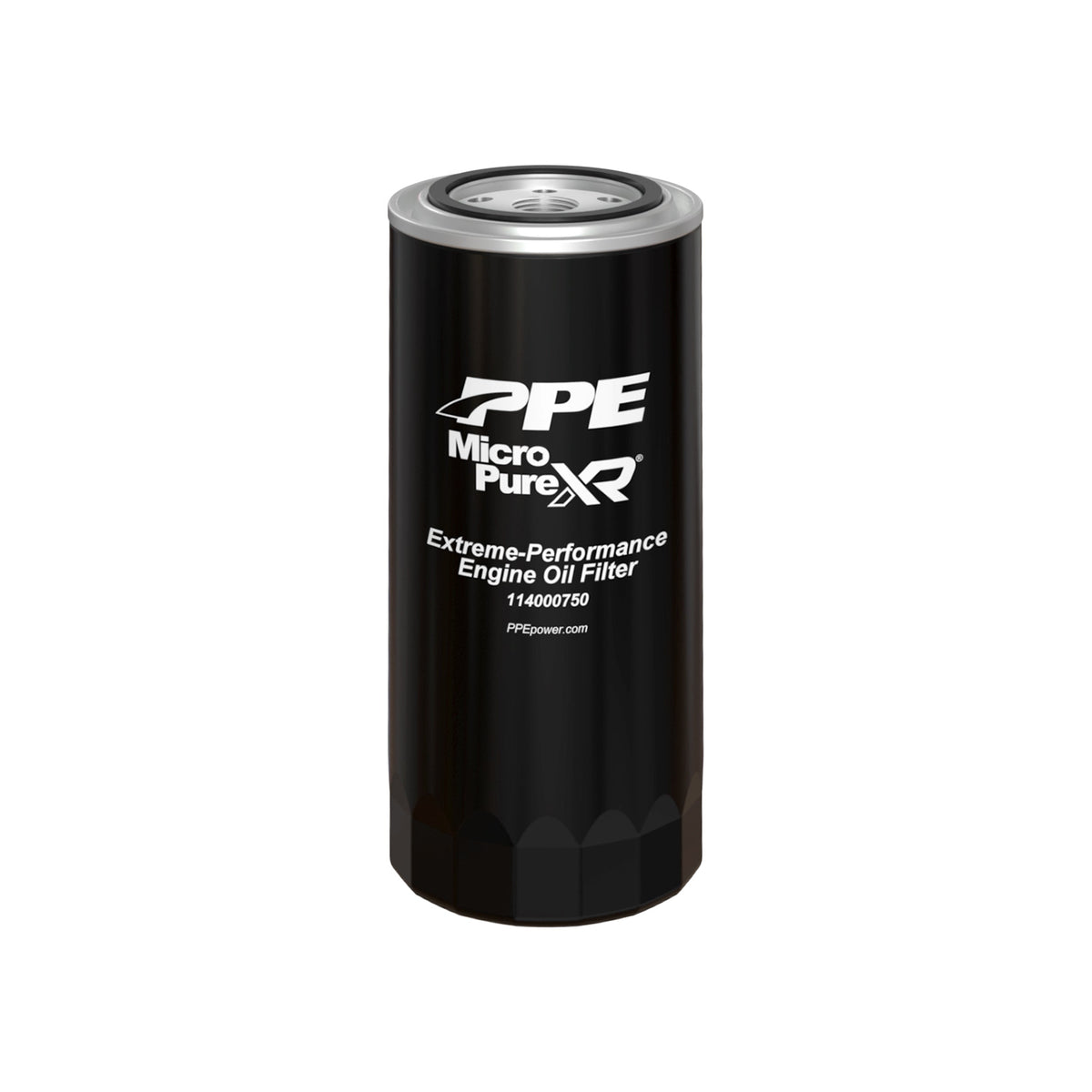

PPE Premium High-Efficiency Oil Filter 2020-2024 GM 6.6L Duramax L5P 5 Micron
Regular price
$29.69
Regular price
-10%
$32.99
Sale price
$29.69
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65
WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer and/or reproductive harm. For more information, visit
www.P65Warnings.ca.gov.
A premium high-efficiency engine oil filter for 2020-2024 GM 6.6L Duramax. The OEM filter offers only 259 square inches of 25-micron filtration and uses a weak leaf spring that lets dirty oil blow past the media.
Key Features
- 522 square inches of filtration area, a 100% increase over the OEM filter
- Ultra-fine synthetic microfiber MicroPure XR media rated 5 micron nominal, against 25 micron for OEM
- Integrated high-temperature neodymium magnet captures ferrous particles before they clog the media
- Heavy-duty coil spring seals the media end cap to the base plate, eliminating dirty oil blow-by
- Steel-NBR poppet and precision coil spring seal the bypass valve, where competitors leave it unsealed
- Heat-resistant silicone anti-drainback valve protects against dry starts
- High-strength steel base plate with increased thread engagement and large oil passages
- Metal centre tube supports the media against pressure
- Pleat-locking spiral adhesive bead keeps pleats evenly spaced
- TorqSTOP technology prevents over-tightening and gives a 450 psi burst rating
Which Factory Filter It Replaces
From 2020 to 2023 the Duramax used the PF26. In 2024 it moved to the PF63, which has larger passage holes but is the same filter fitted to the 5.3L small block, with less media and a greater tendency to clog. This filter outperforms both.
Fitment
2020-2024 GM 6.6L Duramax applications.
Important: PPE states the Fuel Coolant Pump Relocation Bracket Kit, part number 114002700, is REQUIRED to install this deep filter. It is sold separately.
Product Details
- Manufacturer: Pacific Performance Engineering (PPE)
- Manufacturer Part Number: 114000750
- Finish: Black
- Media: MicroPure XR synthetic microfiber
- Filtration Rating: 5 micron nominal
- Filtration Area: 522 square inches
- Burst Pressure: 450 psi
- Replaces: PF26 and PF63
- Condition: New
