PPE Dry Sump Pan 2001-2010 GM 6.6L Duramax Cast Aluminum 4 Inch Low Profile

SKU: 114051000 UPC: 840171206203
In stock - 40 items available
$494.99
-10% $549.99 $494.99

Have a question about this part? We'll answer it.

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

Compliance & Restrictions
California Proposition 65
WARNING: This product can expose you to chemicals that are known to the State of California to cause cancer and/or reproductive harm. For more information, visit www.P65Warnings.ca.gov.

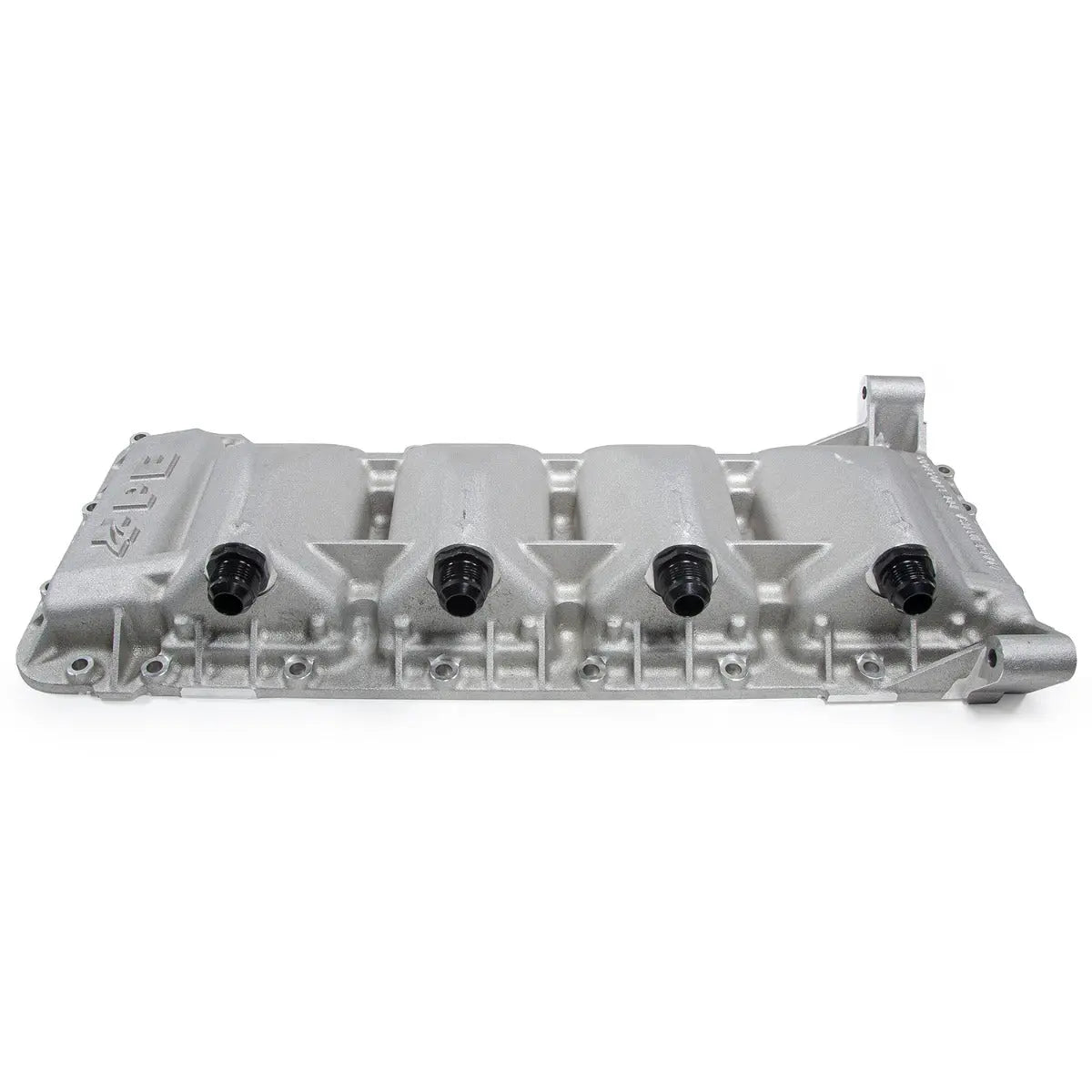

A cast aluminum dry sump oil pan for 2001-2010 GM 6.6L Duramax, with a passenger-side kick-out and a 4 inch low-profile depth.

Key Features

  • Cast 356-T6 aluminum
  • Adds rigidity to the engine block
  • 4 inch low profile
  • Four oil scavenge ports, passenger side, -12
  • -12 ORB to -12 AN screened plugs
  • 304 stainless steel crankcase oil windage scrapers
  • Gusseted reinforced mounting flanges
  • Mounting ears for a transmission bell housing adapter plate, giving extra bell housing support
  • Accepts stock and stroker cranks

What This Is and Is Not

This is the pan, not a dry sump system. A working dry sump also needs an external oil tank, at least two pumps, a pump drive and the plumbing between them, all sold separately. The -12 AN fittings on the pan are outlets that have to run somewhere.

Required: PPE states this pan requires the PPE Oil Cooler Delete Kit, part number 114001000. Note that number is easy to confuse with the pan itself, 114051000.

Fitment

2001-2010 GM 6.6L Duramax applications.

Product Details

  • Manufacturer: Pacific Performance Engineering (PPE)
  • Manufacturer Part Number: 114051000
  • Material: Cast Aluminum
  • Depth: 4 inch low profile
  • Windage Scrapers: 304 Stainless
  • Fittings: -12 AN
  • Requires: PPE Oil Cooler Delete Kit 114001000
  • Condition: New

Shipping Height:

Shipping Length:

Shipping Width:
