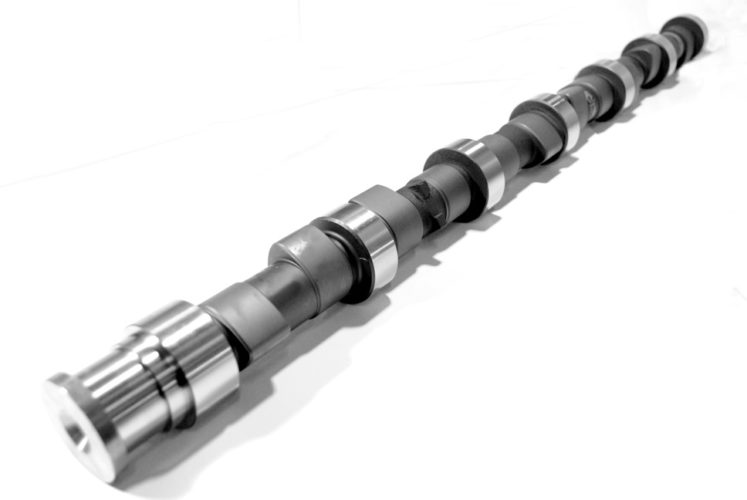

Hamilton Cams 178/208 Towing Camshaft 89-18 5.9L 6.7L Cummins
Regular price
$625.00
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.
Hamilton's towing and street grind, built for low-RPM torque and turbo spool rather than peak power. Duration is 178 degrees intake and 208 exhaust at .050 inch, with .290 inch and .310 inch lift, working from idle to about 4,000 RPM. The usual reasons to fit one are quicker spool on a large single turbo and a 200-300F drop in EGT while towing.
Key Features
- 178/208 duration at .050 inch lift
- .290 inch intake and .310 inch exhaust lift
- Idle to 4,000 RPM operating range
- Improves low-RPM torque and drivability
- Helps spool large single turbochargers
- Typical EGT reduction of 200-300F
- Proven to 1,588 HP in Hamilton dyno testing
Fitment
- 1989-2007 Dodge Ram 5.9L Cummins
- 2007.5-2018 Ram 6.7L Cummins
- Flat-tappet engines only
Clearance Requirements
- 12-valve: maximum .020 inch piston protrusion, minimum .055 inch valve face depth, standard head gasket, 99-degree intake centerline
- 24-valve: maximum .020 inch piston protrusion, minimum .038 inch valve face depth, standard head gasket
- All piston-to-valve and valvetrain clearances must be checked during installation
- If minimum clearance is not available, use an oversized head gasket or cut valve reliefs
Required Components
- Hamilton Cams warranties camshafts only when installed with Hamilton Cams tappets and valve springs.
- New tappets are recommended whenever a camshaft is replaced
Break-In and Oil
Flat-tappet valvetrains require 15W-40 oil with adequate zinc, phosphorus and molybdenum (5W-40 in sub-zero conditions). Approved oils include Valvoline, Schaeffer's, Mobil Delvac Extreme, LIQUI MOLY Touring High Tech, Driven Racing Oil and Shell Rotella.
Product Details
- Brand: Hamilton Cams
- Manufacturer Part Number: 07-c-178/208
- UPC: 857340008087
