Fuelab 617 Series Brushless Fuel Surge Tank System 290mm 500 LPH 1250 HP
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$1,731.00
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.

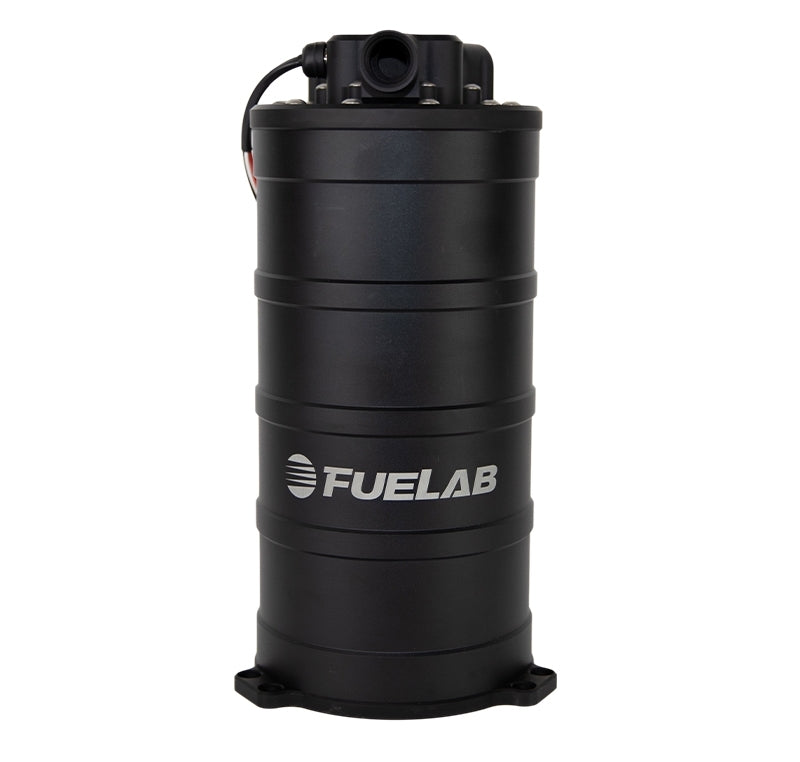

Fuelab 617 Series Brushless Fuel Surge Tank System 290mm 500 LPH 1250 HP (flb61713). This Fuelab 617 Series fuel surge tank system holds a ready volume of fuel so the engine keeps a supply during hard cornering, braking and low tank levels. The 290mm tall unit holds 2.7 L and uses an H/E Series brushless twin screw pump rated at 500 LPH.
Key Features
- Rated volume 2.7 L, 290mm tall
- Single H/E Series twin screw DC brushless fuel pump rated 500 LPH at 45 PSI, 125 PSI max
- Supports up to 1250 HP
- Integrated controller electronics with PWM speed control
- Allows high fuel flow output with little or no modification to the OE tank and module
- Billet aluminum and O-ring construction using -8AN fuel ports
- Compatible with gasoline, methanol and ethanol
- Return line required, returns excess fuel to the vehicle fuel tank
- 12 to 16 volt electrical system compatibility
Fitment
Universal application. This is a universal fuel system assembly and is not specific to a vehicle year, make or model. Mounting location, plumbing and a return line need to be worked out for the individual build.
Product Details
- Brand: Fuelab
- Series: 617 Series Brushless Fuel Pump Surge Tank System
- Rated Volume: 2.7 L
- Height: 290mm
- Pump Flow Rating: 500 LPH at 45 PSI
- Horsepower Rating: Up to 1250 HP
- Fuel Ports: -8AN
- Optional Accessory Kit: 23902
- Warranty: Fuelab limited lifetime warranty
Shipping Height: 6.0
Shipping Length: 12.5
Shipping Width: 6.0
