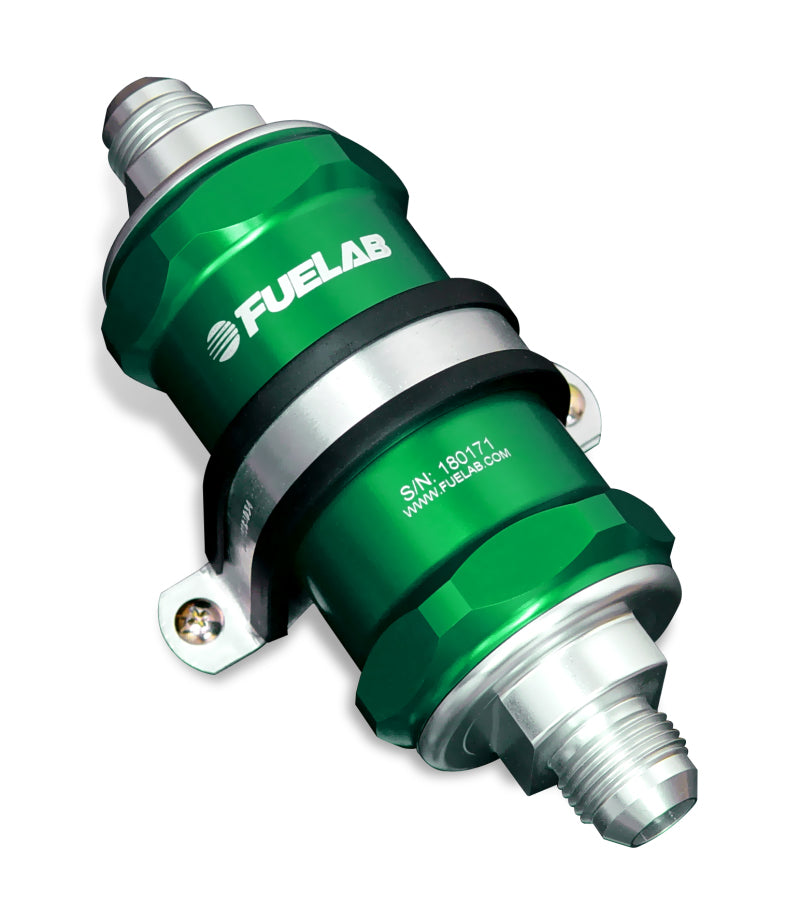

Fuelab 848 Series Fuel Filter w/Check Valve -6AN 10 Micron Paper - Green

Fuelab 848 Series Fuel Filter with Check Valve -6AN 10 Micron Paper in Green. The Fuelab 848 Series combines a 3 inch in-line fuel filter with an integrated check valve on the outlet side, so the fuel system holds pressure after the engine and pump shut down. This version uses -6AN male end caps and a 10 micron cellulose paper element.

The 10 micron paper element is the most economical and most commonly used option in the Fuelab range. It is disposable, and it is not compatible with methanol or E85.

Key Features

• Integrated check valve assembly on the outlet side of the filter
• Helps maintain fuel pressure after engine and pump shut down
• Aerospace inspired poppet with a fluorosilicone soft seat
• Rated up to 1000 HP
• 3 inch replaceable filter element
• -6AN male 37 degree flared inlet and outlet caps
• Gasoline, diesel, methanol and ethanol compatible
• Billet aluminum body anodized per military spec MIL-A-8625, Type II
• Machined internal radii for minimal pressure drop
• Replaceable or cleanable filter element
• 200 PSIG maximum pressure rating

Product Details

• Brand: Fuelab
• Manufacturer Part Number: 84801-6
• Series: 848 Series In-Line Filter with Integrated Check Valve
• Element: 10 Micron Paper (3 inch)
• Ports: -6AN Inlet/Outlet
• Finish: Green anodized
• Rating: Standard flow, up to 1000 HP
• Replacement Element: 71801
• Warranty: Fuelab limited lifetime warranty
