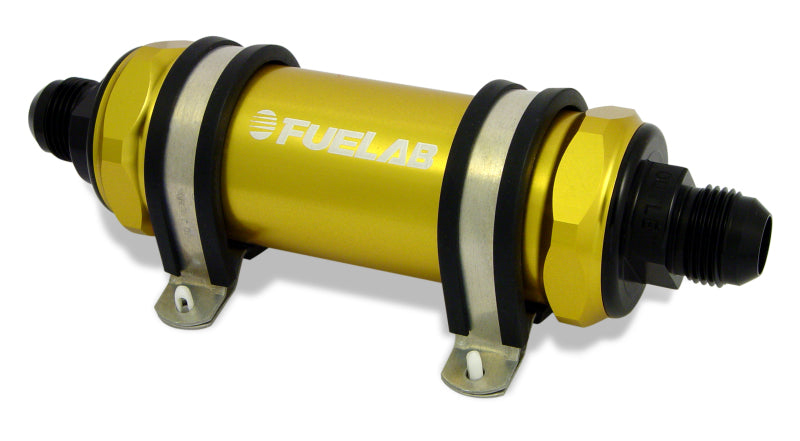

Fuelab 828 Series In-Line Fuel Filter -6AN 100 Micron Stainless - Gold

Fuelab 828 Series In-Line Fuel Filter -6AN 100 Micron Stainless in Gold. Built around a 5 inch element, the Fuelab 828 Series delivers more filtration capacity and less pressure drop than the short 818 Series. This configuration uses -6AN male end caps and a 100 micron stainless steel element.

The 100 micron stainless steel element is intended for use as a pre-filter ahead of a fuel pump, where it helps prevent pump cavitation with very low pressure drop. Fuelab recommends a finer element downstream to protect injectors or carburetors.

Key Features

• 5 inch element for greater flow and filtration capacity
• Less pressure drop, which works well in a pre-filter position
• Reduced maintenance frequency
• -6AN male 37 degree flared inlet and outlet caps
• Low profile saddle clamp mounting brackets included
• Gasoline, diesel, methanol and ethanol compatible
• Billet aluminum body anodized per military spec MIL-A-8625, Type II
• Machined internal radii for minimal pressure drop
• Replaceable or cleanable filter element
• 200 PSIG maximum pressure rating

Product Details

• Brand: Fuelab
• Manufacturer Part Number: 82821-5
• Series: 828 Series In-Line Fuel Filter
• Element: 100 Micron Stainless (5 inch)
• Ports: -6AN Inlet/Outlet
• Finish: Gold anodized
• Replacement Element: 71807
• Warranty: Fuelab limited lifetime warranty

Orders typically ship within 24–48 hours of being received, but because of vendor shipping times some orders may take longer. We ship within the United States only (48 contiguous states plus DC).

Shipping Height: 4.3

Shipping Length: 10.5

Shipping Width: 4.3
