Fuelab 828 Series In-Line Fuel Filter -12AN 10 Micron Paper - Green

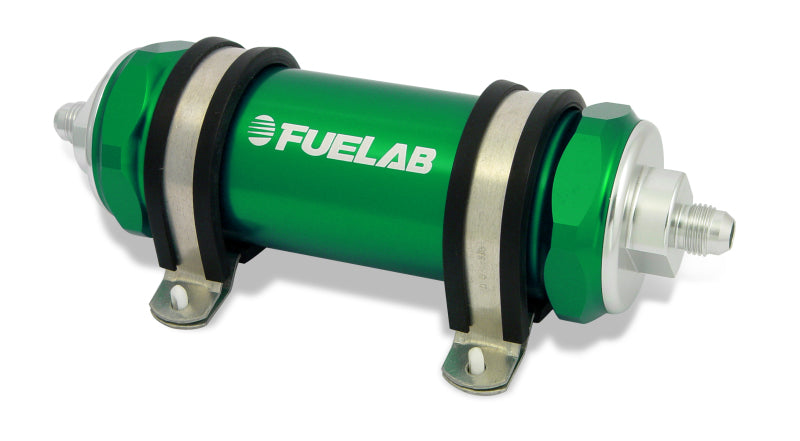

Fuelab 828 Series In-Line Fuel Filter -12AN 10 Micron Paper in Green. This 828 Series in-line fuel filter carries a 5 inch 10 micron cellulose paper element in a billet aluminum housing with -12AN male 37 degree flared end caps. The longer element lowers pressure drop, which also makes it a strong choice as a pre-filter.

The 10 micron paper element is the most economical and most commonly used option in the Fuelab range. It is disposable, and it is not compatible with methanol or E85.

Key Features

• 5 inch element for greater flow and filtration capacity
• Less pressure drop, which works well in a pre-filter position
• Reduced maintenance frequency
• -12AN male 37 degree flared inlet and outlet caps
• Low profile saddle clamp mounting brackets included
• Gasoline, diesel, methanol and ethanol compatible
• Billet aluminum body anodized per military spec MIL-A-8625, Type II
• Machined internal radii for minimal pressure drop
• Replaceable or cleanable filter element
• 200 PSIG maximum pressure rating

Product Details

• Brand: Fuelab
• Manufacturer Part Number: 82804-6
• Series: 828 Series In-Line Fuel Filter
• Element: 10 Micron Paper (5 inch)
• Ports: -12AN Inlet/Outlet
• Finish: Green anodized
• Replacement Element: 71805
• Warranty: Fuelab limited lifetime warranty
