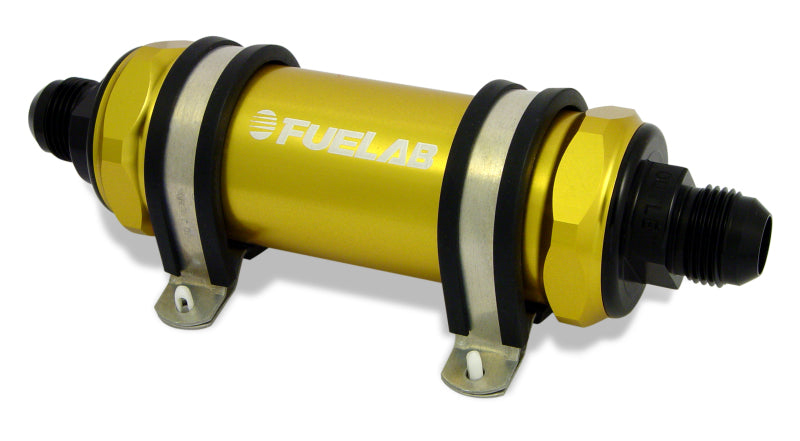

Fuelab 828 Series In-Line Fuel Filter -12AN 10 Micron Paper - Gold

Fuelab 828 Series In-Line Fuel Filter -12AN 10 Micron Paper in Gold. The Fuelab 828 Series uses a 5 inch element in place of the 818 Series 3 inch element, which gives it greater flow capacity, more filtration area and longer service intervals. This one is set up with -12AN male end caps and a 10 micron cellulose paper element.

The 10 micron paper element is the most economical and most commonly used option in the Fuelab range. It is disposable, and it is not compatible with methanol or E85.

Key Features

• 5 inch element for greater flow and filtration capacity
• Less pressure drop, which works well in a pre-filter position
• Reduced maintenance frequency
• -12AN male 37 degree flared inlet and outlet caps
• Low profile saddle clamp mounting brackets included
• Gasoline, diesel, methanol and ethanol compatible
• Billet aluminum body anodized per military spec MIL-A-8625, Type II
• Machined internal radii for minimal pressure drop
• Replaceable or cleanable filter element
• 200 PSIG maximum pressure rating

Product Details

• Brand: Fuelab
• Manufacturer Part Number: 82804-5
• Series: 828 Series In-Line Fuel Filter
• Element: 10 Micron Paper (5 inch)
• Ports: -12AN Inlet/Outlet
• Finish: Gold anodized
• Replacement Element: 71805
• Warranty: Fuelab limited lifetime warranty

Orders typically ship within 24–48 hours of being received, but because of vendor shipping times some orders may take longer. We ship within the United States only (48 contiguous states plus DC).

Shipping Height: 4.3

Shipping Length: 10.5

Shipping Width: 4.3
