AutoMeter

AutoMeter Elite Pyrometer EGT Gauge 0-2000F 2-1/16in w/ Peak & Warn

SKU: atm5645 UPC: 46074056451
Backordered – call for lead time
$329.01

Have a question about this part? We'll answer it.

Shipping PolicyRMAs and Core ReturnsQuestions? Call (503) 235-1947

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

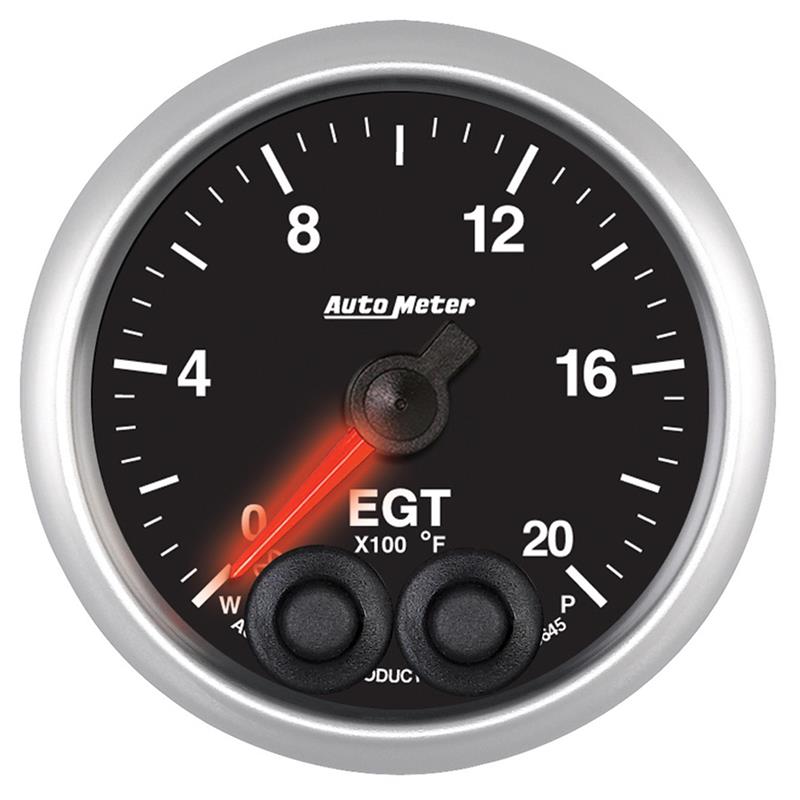

Pyrometer egt gauge in AutoMeter's Elite styling, with a 0-2000F range and a 2-1/16in case. Watching your precise exhaust temperature can mean the difference between maximum performance and catastrophic engine damage. On high output diesel or forced induction applications, there are few gauges that are more critical. AutoMeter's Digital Stepper Motor display combined with our high definition LED backlighting make viewing your exact exhaust temperature effortless.

Key Features

  • 7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
  • Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
  • Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
  • Acquire data for later review with one-touch Peak Recall functionality
  • Gauge kit includes Type-K Thermocouple, wiring harness, thermocouple installation kit, mounting hardware, and detailed instructions for installation
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
  • Size: 2-1/16in (52.4mm)
  • Range: 0-2000F
  • Movement: Electric, Digital Stepper Motor
  • Lighting: 7 User Selectable Colors LED
  • Finish: Black dial, fluorescent red pointer, Brushed Aluminum Super Bezel, flat, clear lens
  • Includes sensor: AutoMeter 5296
  • Includes adapters/fittings: AutoMeter 3256
  • Includes wire harness: AutoMeter 5296
  • Includes mounting hardware: AutoMeter 2230

Product Details

  • Brand: AutoMeter
  • Manufacturer Part Number: 5645
  • Product Line: Elite
  • Manufacturer Warranty: 12 months

Orders typically ship within 24–48 hours of being received, but because of vendor shipping times some orders may take longer. We ship within the United States only (48 contiguous states plus DC).

Shipping Height: 5.25

Shipping Length: 5.5

Shipping Width: 5.5
