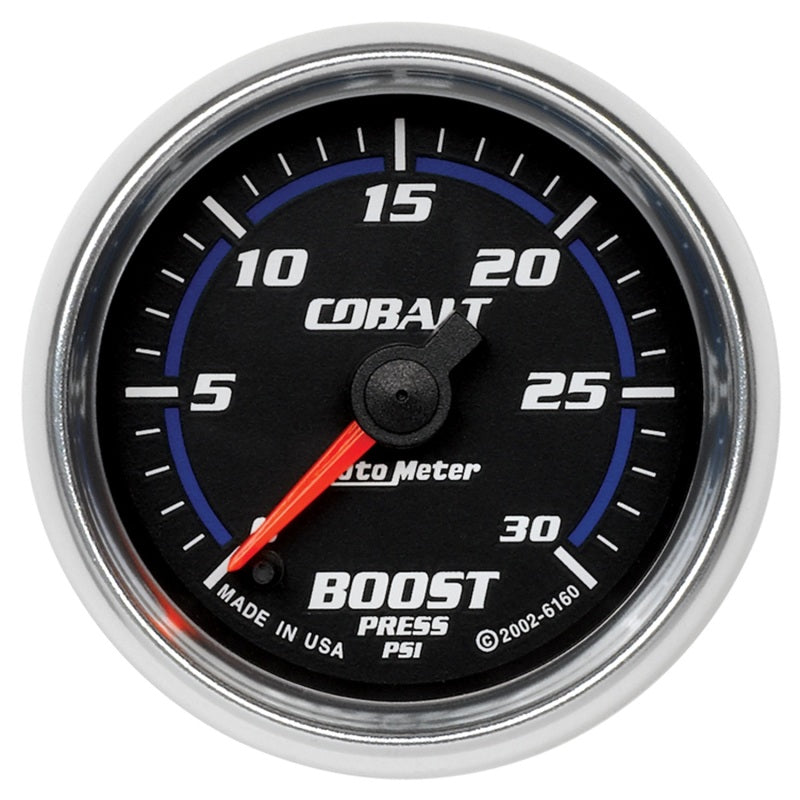

AutoMeter Cobalt Boost Gauge 0-30 PSI 2-1/16in Full Sweep Stepper Motor

This 2-1/16in boost gauge is part of AutoMeter's Cobalt line and reads 0-30 PSI. Forced induction applications require precise monitoring of the boost pressure being created by your turbo or supercharger to get the most power safely from your engine. Designed for diesel or extreme boost applications, these gauges include a highly advanced 1/8" NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.

Key Features

• Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
• Includes data acquisition grade solid-state MAP Sensor, providing unmatched accuracy and durability even in the harshest environments
• AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Gauge kit includes MAP Sensor, T-Fitting, nylon tubing, vacuum fittings, wiring harness, mounting hardware, and detailed instructions for installation
• Size: 2-1/16in (52.4mm)
• Range: 0-30 PSI
• Movement: Electric, Digital Stepper Motor
• Lighting: Blue LED
• Finish: Black dial, fluorescent red pointer, Bright Anodized Super Bezel, flat, clear lens
• Includes sensor: AutoMeter 2249
• Includes adapters/fittings: T - Fitting
• Includes wire harness: AutoMeter 5229
• Includes tubing: 10 ft. nylon tubing
• Includes mounting hardware: AutoMeter 2230

Product Details

• Brand: AutoMeter
• Manufacturer Part Number: 6160
• Product Line: Cobalt
• Manufacturer Warranty: 12 months
