Koyo

Koyo Universal Tube and Fin Crossflow Oil Cooler 23in x 4in -10AN ORB

SKU: koyXC052304 UPC: 847839018772
In stock - 4 items available
$494.00

Have a question about this part? We'll answer it.

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm. For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase. Orders shipping to restricted areas may be canceled.

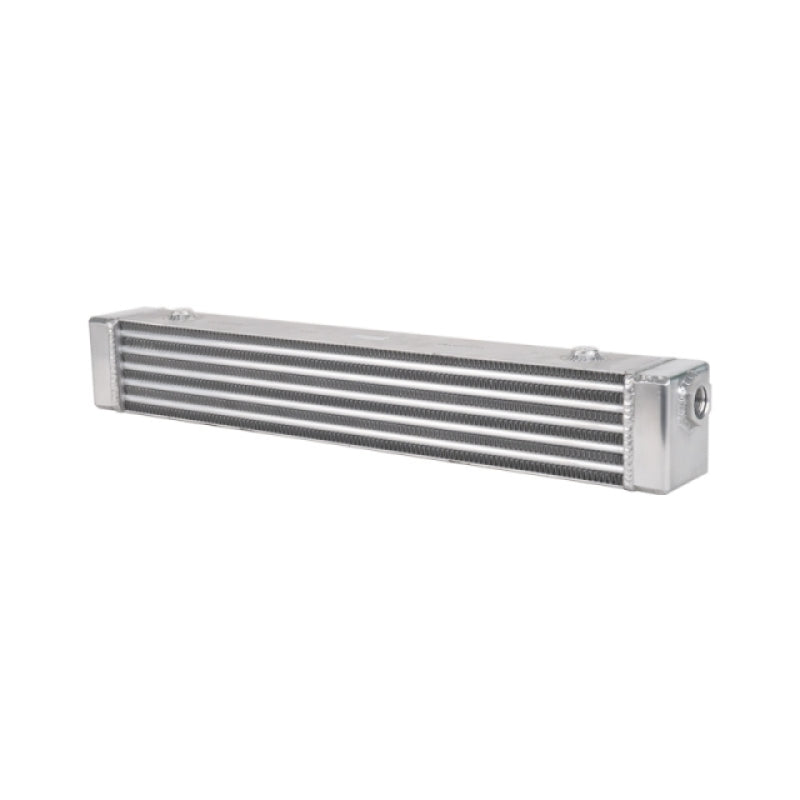

The Koyo XC052304 is an all-aluminum universal crossflow fluid cooler built on an extruded tube and fin core. Its 23 inch wide by 4 inch tall shape is intended for center mounting above or below the radiator or intercooler on modern vehicles where a taller cooler will not fit, and it can be plumbed for engine oil, transmission fluid, power steering fluid or differential oil.

Key Features

  • Extruded tube and fin core, the same core style Koyorad runs in Japanese competition
  • Rounded tube faces allow better ambient air pass-through than flat faced bar and plate cores
  • Lower weight than a comparable bar and plate cooler
  • Wide, low profile suited to center mounting in front of or behind other coolers
  • Two -10 AN ORB (O-ring boss) provisions for inlet and outlet
  • Built in Koyorad's own ISO 9001 certified factory

Product Details

  • Manufacturer Part Number: XC052304
  • Brand: Koyo (Koyorad)
  • Cooler type: tube and fin
  • Rows: 5
  • Core dimensions: 23 in. x 4 in. x 2.5 in.
  • Dry weight: 4.9 lbs.
  • Fluid volume: 1.25 qt. (1.18 L)
  • Ports: two -10 AN ORB
  • Application: universal
  • Hoses, adapter fittings and sandwich adapters are not included

Shipping Height: 7.0

Shipping Length: 32.0

Shipping Width: 7.1
