Hella Micro Relay 12V 20A 5-Pin Bistable Latching Change-Over
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$41.13
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.

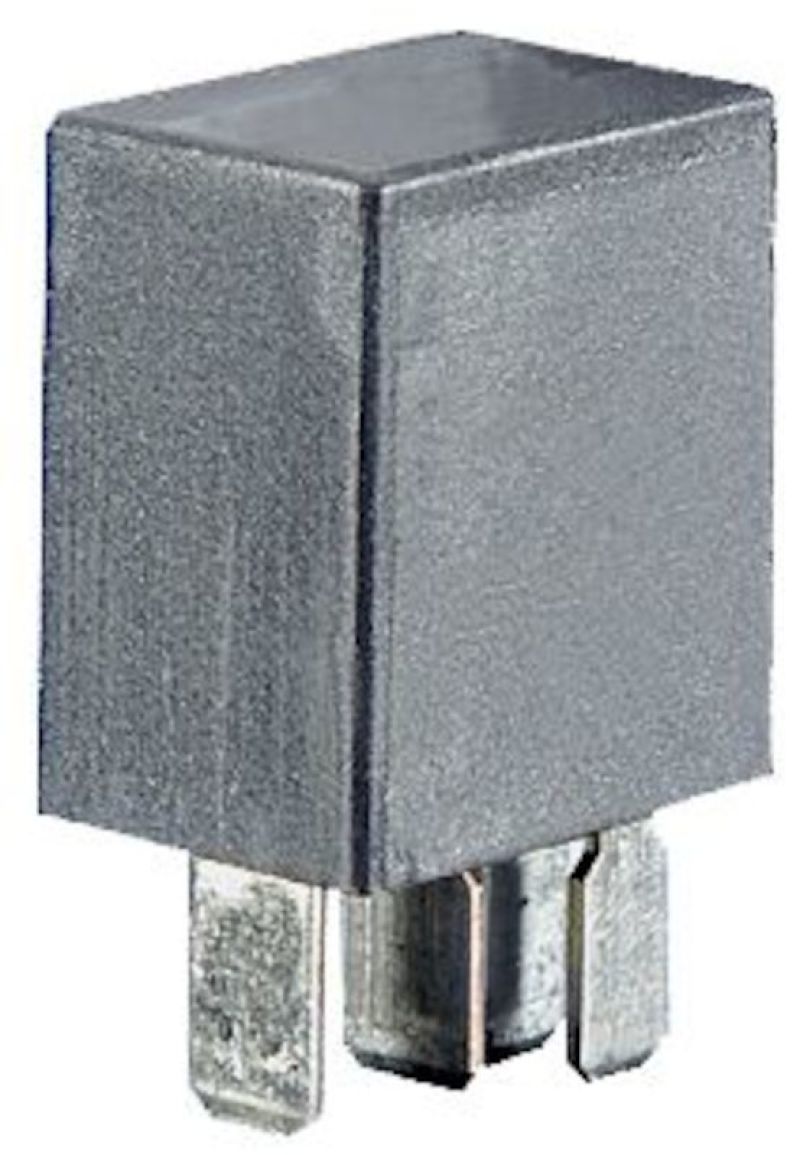

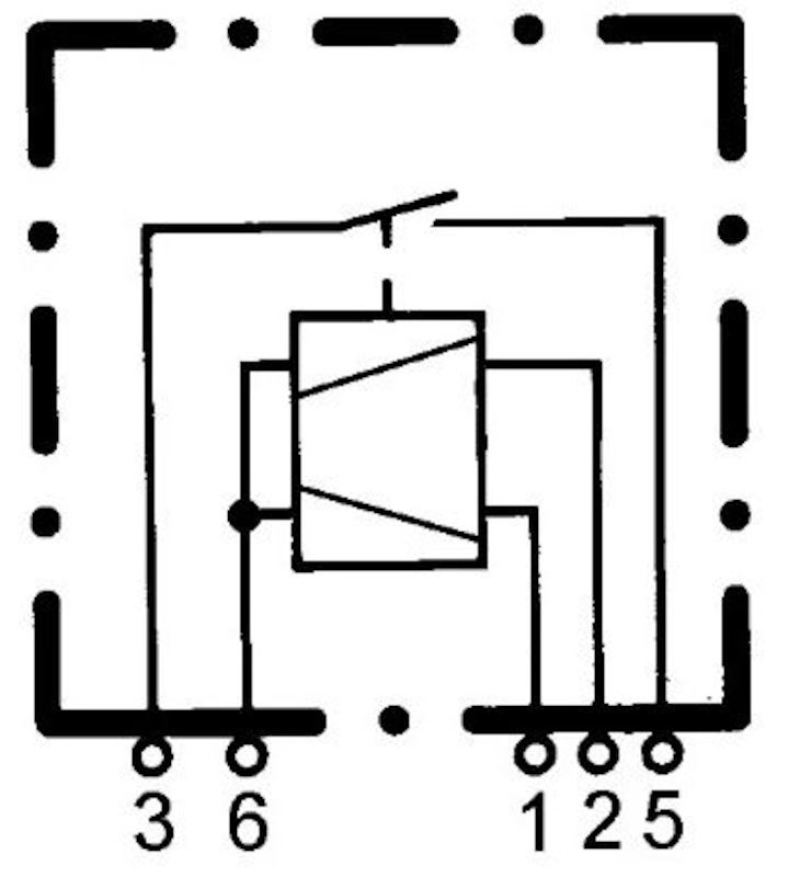

The HELLA 4RC 933 364-027 is a bistable 12 volt micro relay: a short pulse to the coil flips the contacts, and they stay latched until the opposite pulse arrives. Because the coil is not continuously energised, it draws no holding current, which makes it well suited to circuits that must hold a state for long periods without adding parasitic load.
Key Features
- Bistable (latching) design holds its switched state without coil current
- Five-pin change-over layout, rated up to 20 A
- Dual 75 ohm coils for set and reset pulses
- Rated for a minimum of 100,000 switching operations
- Compact micro relay footprint saves space in dense fuse boxes
Product Details
- Manufacturer Part Number: 4RC 933 364-027
- Rated voltage: 12 V (operating range 8 V to 16 V)
- Coil resistance: 2 x 75 ohm
- Terminals: 30 and 87 at 6.3 x 0.8 mm; 85, 86 and 87a at 4.8 x 0.8 mm
- Supplied without bracket
- Permissible ambient temperature: -40°C to +105°C
- Response and drop-out time: under 5 ms
