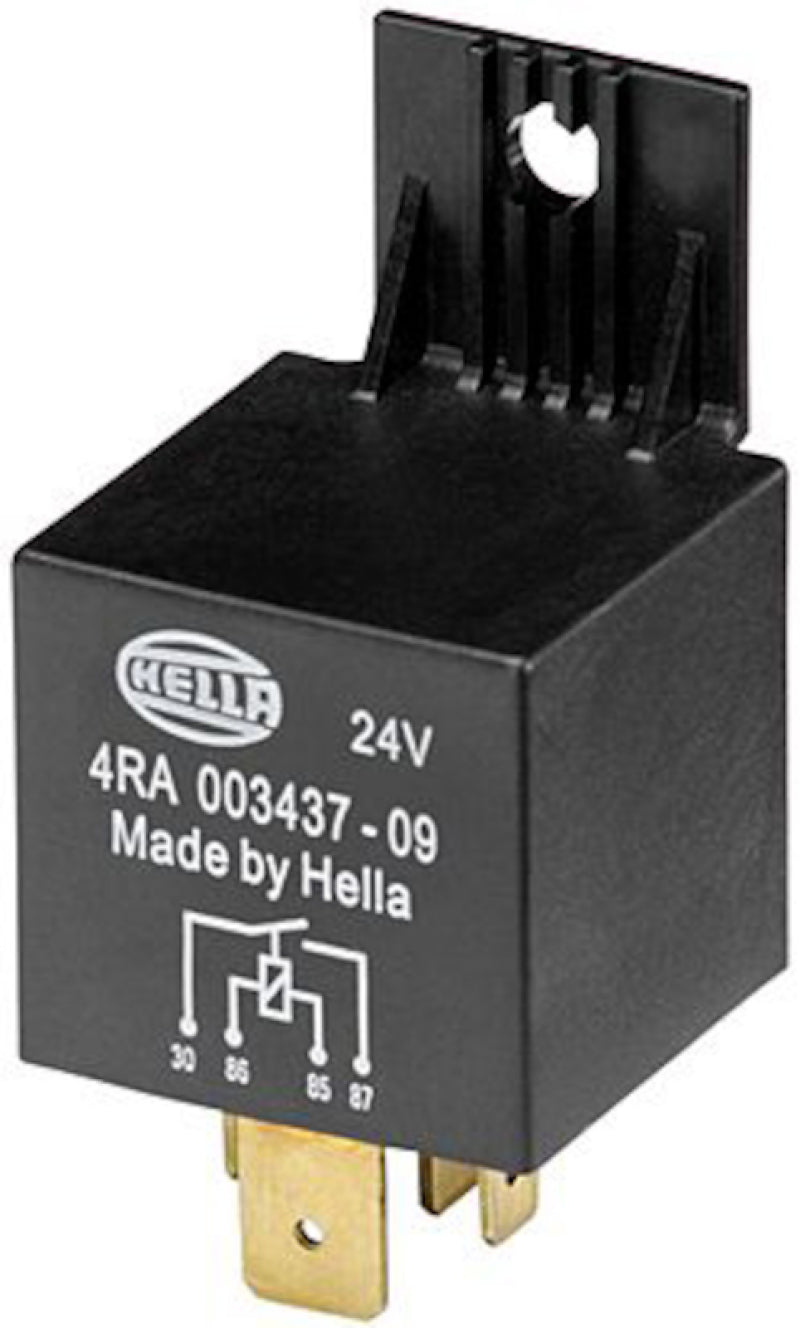

Hella High Performance Relay 24V 60A SPST 4-Pin with Bracket
Regular price
$21.79
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.
Rated to 60 amps, the HELLA 4RA 003 437-097 is a high-power 24 volt make relay built on an enlarged mini-relay footprint. It is designed for heavy switching duties such as battery disconnect circuits, starter motors, glow plugs, ignition and windshield heating on trucks, buses and off-highway equipment.
Key Features
- Normally-open (SPST) contact rated 25 A minimum to 60 A maximum at 80°C ambient
- Heavy 9.5 x 1.2 mm load terminals on 30 and 87 for high-current cabling
- Integral mounting bracket
- Minimum 50,000 switching operations at rated load
Product Details
- Manufacturer Part Number: 4RA 003 437-097
- Rated voltage: 24 V (operating range 16 V to 30 V)
- Coil resistance: 310 ohm
- Terminals: 30 and 87 at 9.5 x 1.2 mm; 85 and 86 at 6.3 x 0.8 mm, per ISO 8092-1
- Permissible ambient temperature: -40°C to +85°C
- Contact voltage drop: less than 3 mV/A when new
