Hella Mini ISO Relay 24V 20A SPST 4-Pin with Resistor No Bracket
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$11.43
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.

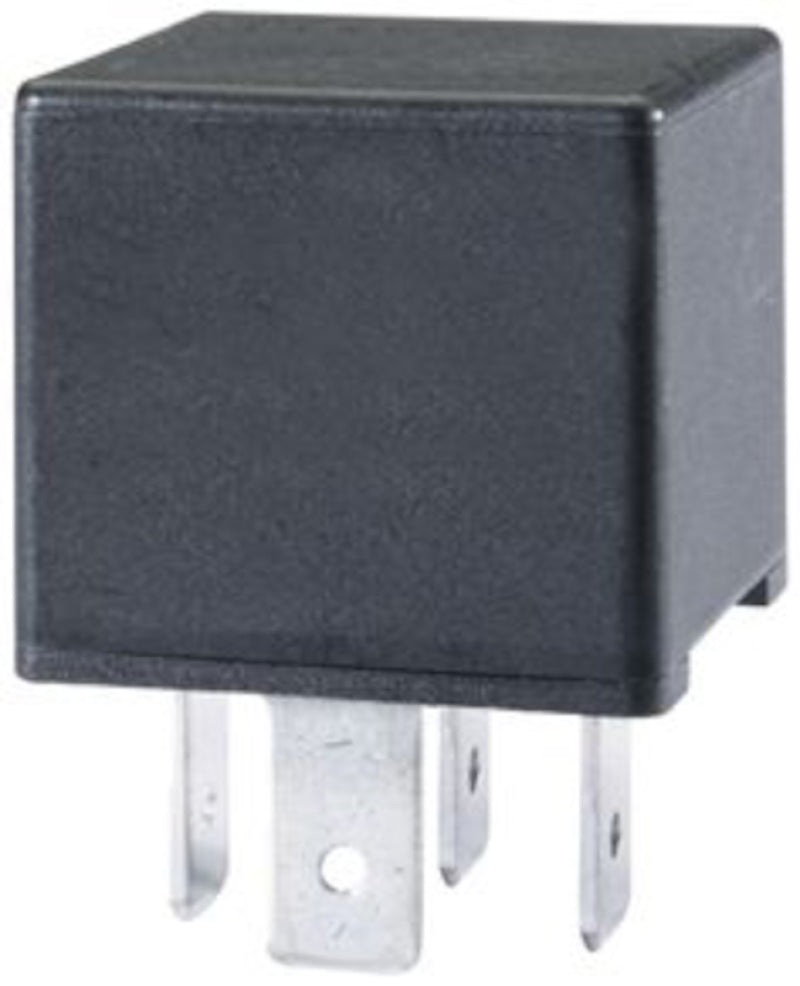

A 24 volt mini ISO make relay from HELLA, supplied as a single unit without a mounting bracket. The 4RA 007 957-001 closes a high-current load circuit between terminals 30 and 87 when the coil is energised, and is widely used on trucks, buses and municipal vehicles for lamp, horn, heater and fan motor circuits.
Key Features
- Normally-open (SPST) contact rated 16 A to 20 A at 80°C ambient
- Parallel coil resistor limits inductive voltage spikes on switch-off
- Standard mini relay footprint per ISO 7588-1 for easy retrofit
- Minimum 100,000 switching operations
Product Details
- Manufacturer Part Number: 4RA 007 957-001
- Rated voltage: 24 V (operating range 16 V to 30 V)
- Coil resistance: 305 ohm, parallel resistance 1,200 ohm
- Terminals: 4-pole, 6.3 x 0.8 mm blades per ISO 8092-1
- Ambient temperature range: -40°C to +125°C
Shipping Height: 0.95
Shipping Length: 2.6
Shipping Width: 1.18
