Hella S1 Weatherproof Relay 12V 20/40A SPDT 5-Pin with Bracket
Regular price
$13.26
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.

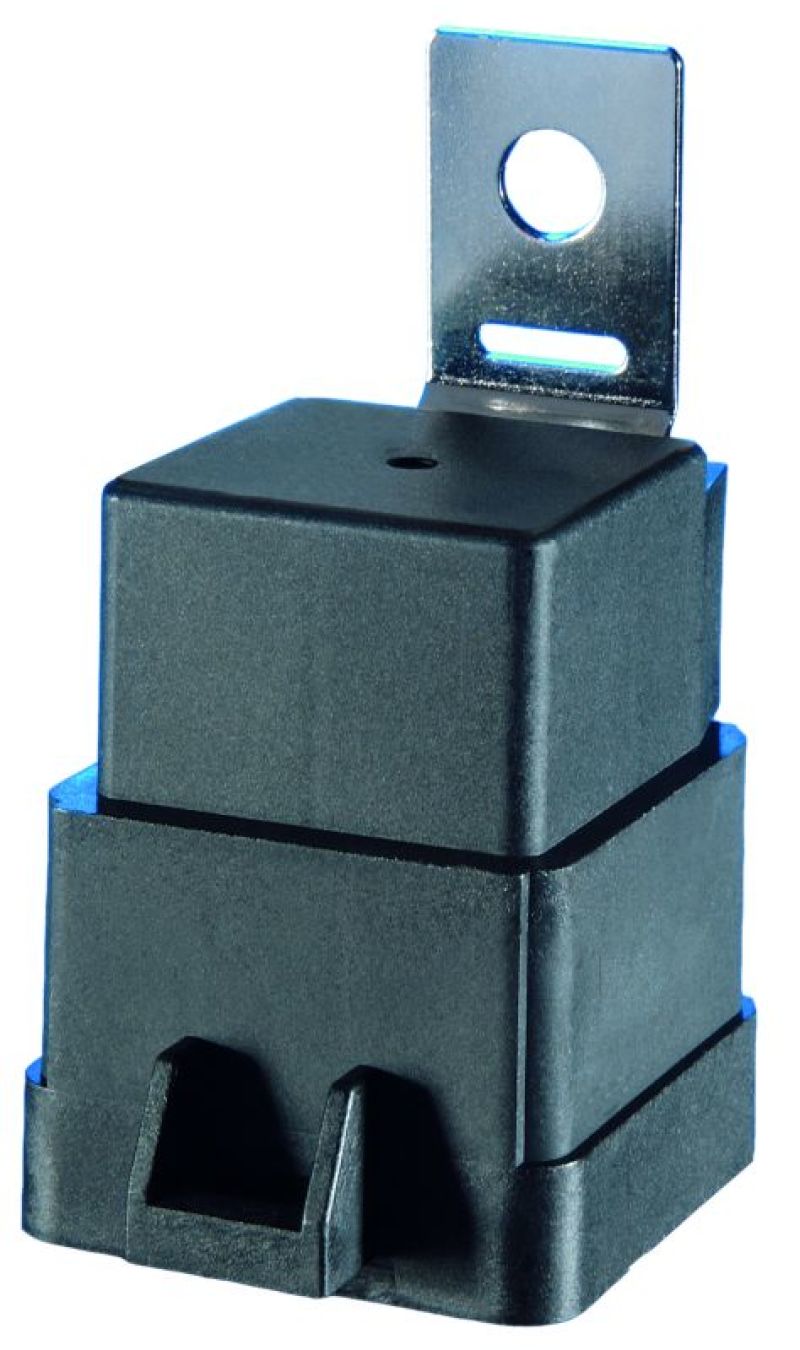

HELLA's 007 794-301 is an S1-series weatherproof change-over relay with a mounting bracket, and replaces the earlier H41388151 part number. Its sealed body and 150,000-cycle resistive rating make it a durable choice for exposed lighting, pump and accessory circuits.
Key Features
- Change-over (SPDT, 1 Form C) contact: 40 A normally open, 20 A normally closed
- Resistive load rating of 150,000 switching cycles
- Inductive and lamp loads rated 30 A normally open and 20 A normally closed at 100,000 cycles
- Maximum inrush load 150 A
- Weatherproof housing with mounting bracket
Product Details
- Manufacturer Part Number: 007 794-301 (supersedes H41388151)
- Rated voltage: 12 V

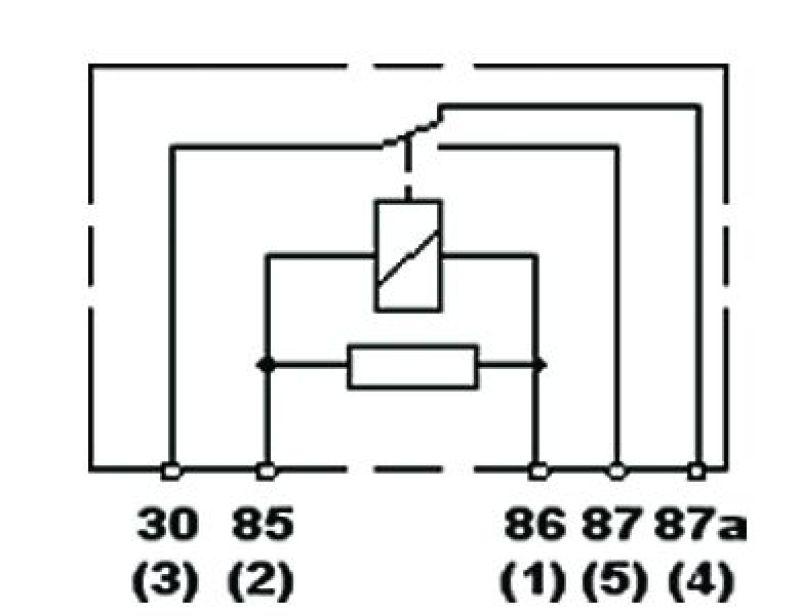

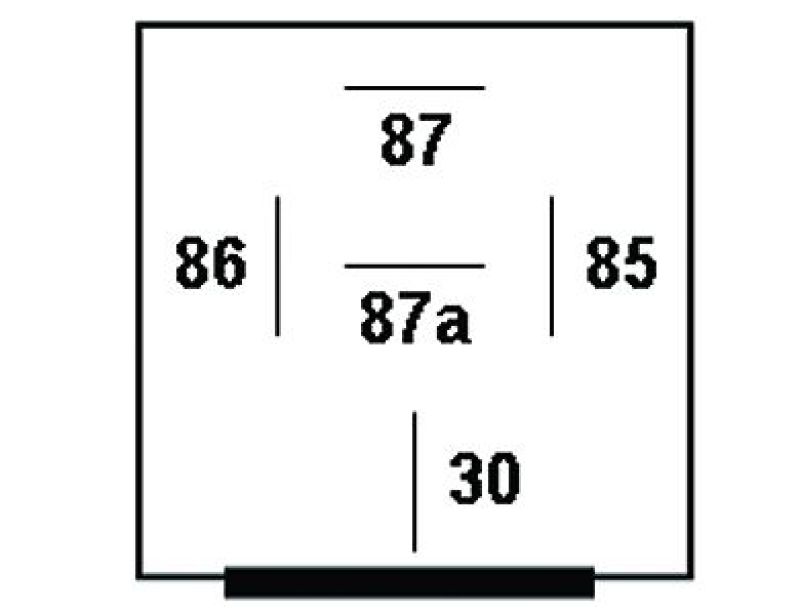

- Terminals 85 and 86: ISO 8092, 6.3 x 0.8 mm, CuZn, tin plated
- Terminals 30, 87 and 87a: ISO 8092, 6.3 x 0.8 mm, E-Cu, tin plated
Shipping Height: 2.0
Shipping Length: 3.0
Shipping Width: 3.0
