Hella Weatherproof Mini ISO Relay 12V 20/40A SPDT with Bracket
Regular price
$12.97
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.

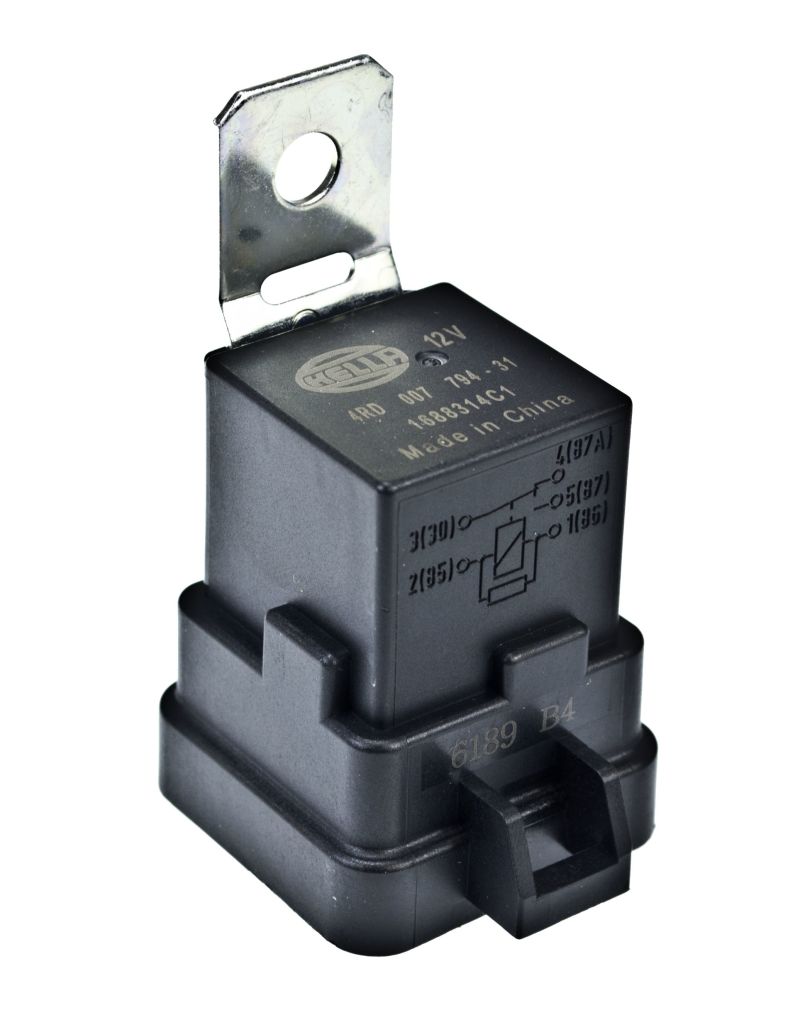

HELLA's 007 794-311 is a sealed mini ISO change-over relay built for engine bays, chassis rails and other exposed locations. The weatherproof housing and bracket let it mount outside the cab without a separate enclosure, while the five-pin SPDT contact handles lighting, cooling fan and central locking loads.
Key Features
- Change-over (SPDT, 1 Form C) contact: 40 A on the normally-open output, 20 A on the normally-closed output
- Weatherproof housing suited to exposed mounting positions

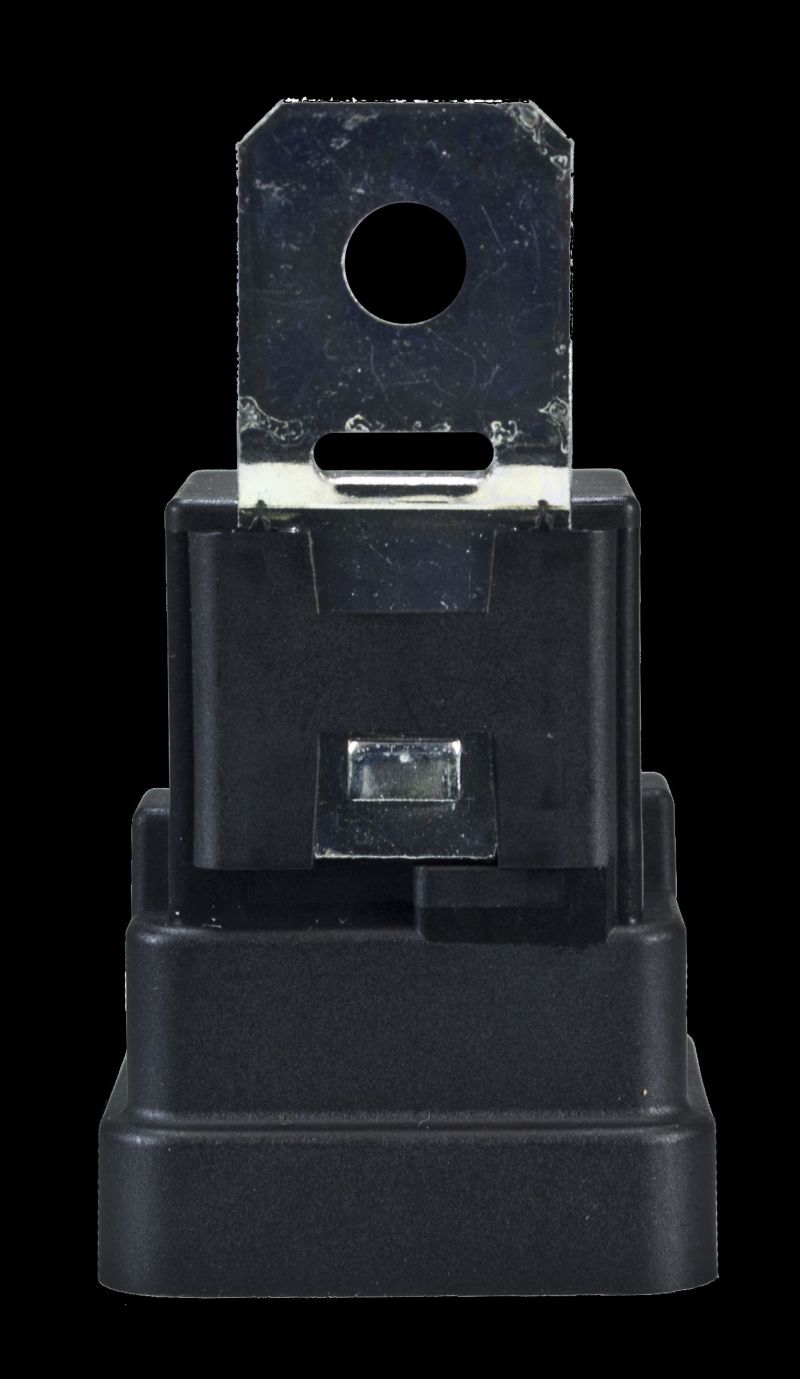

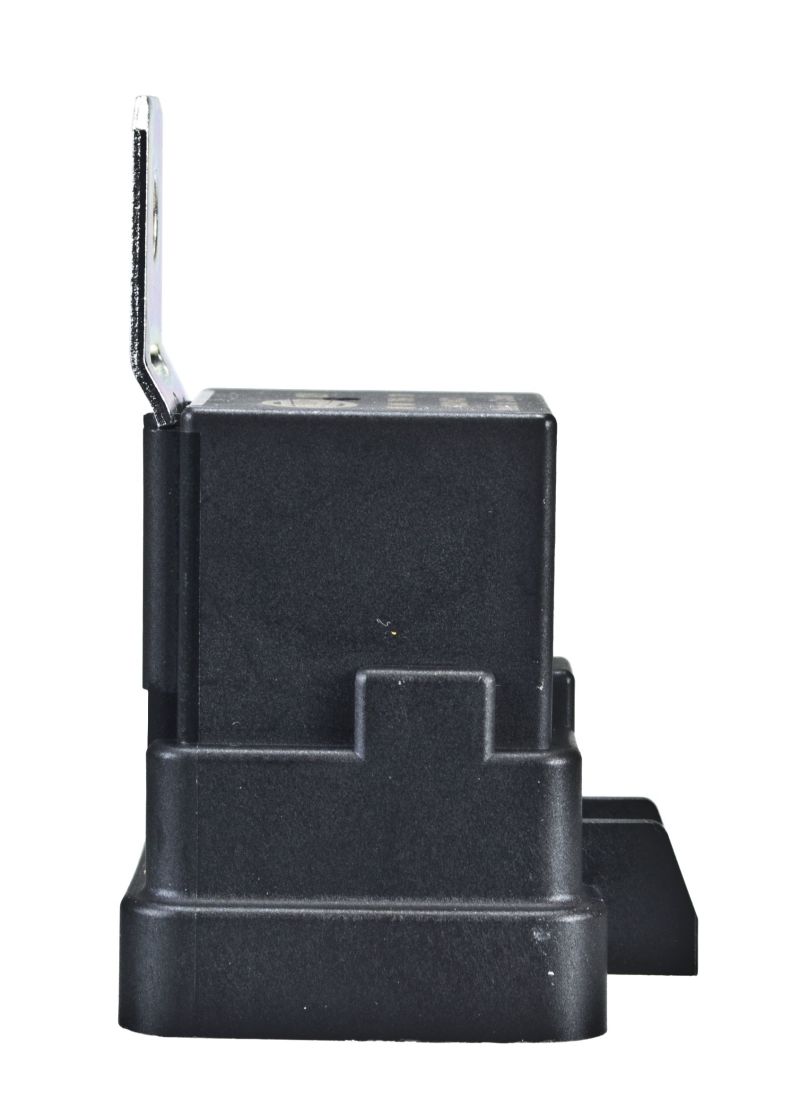

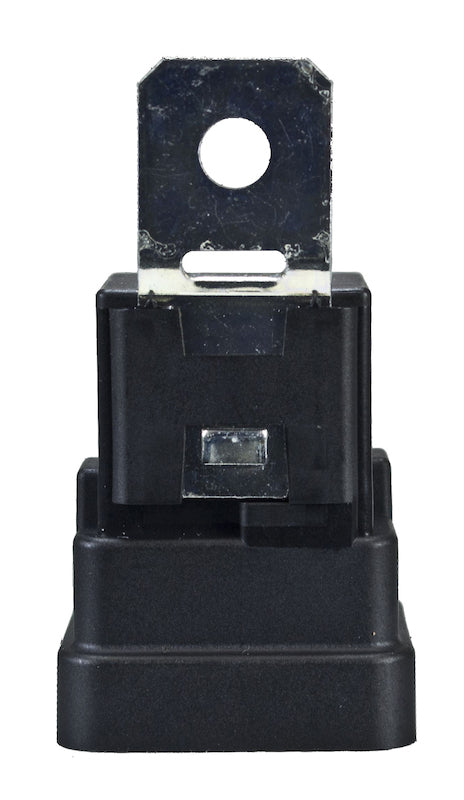

- Mounting bracket included
- Resistor fitted across the coil for spike suppression
Product Details

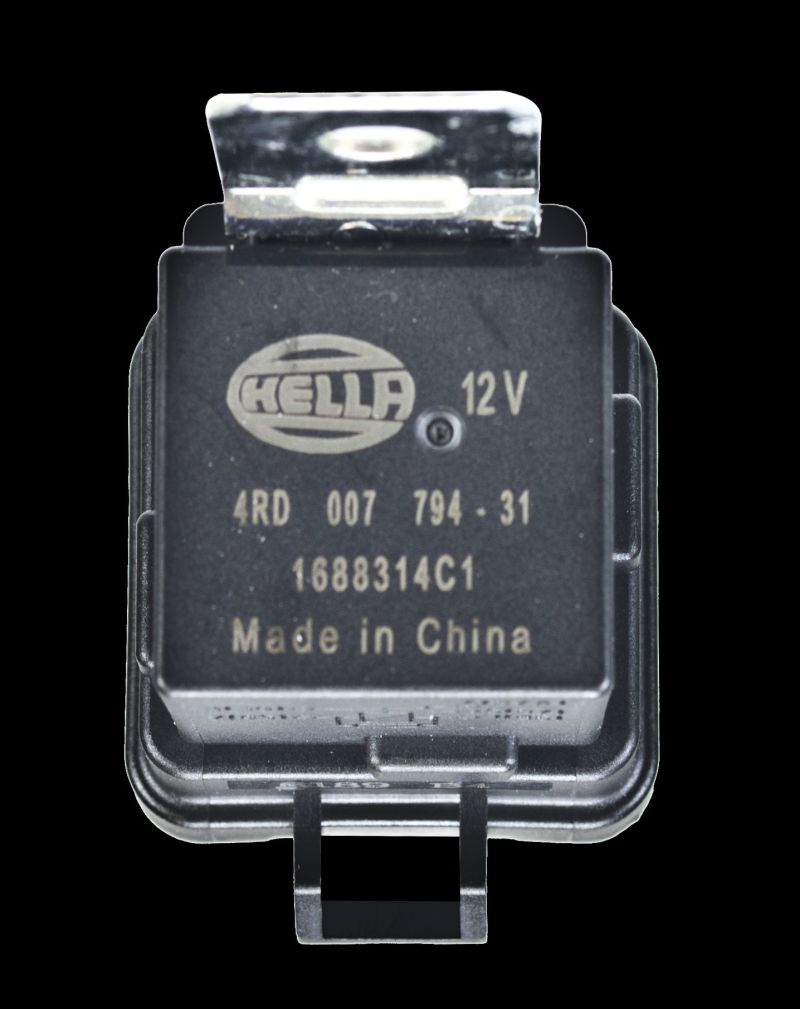

- Manufacturer Part Number: 007 794-311
- Rated voltage: 12 V

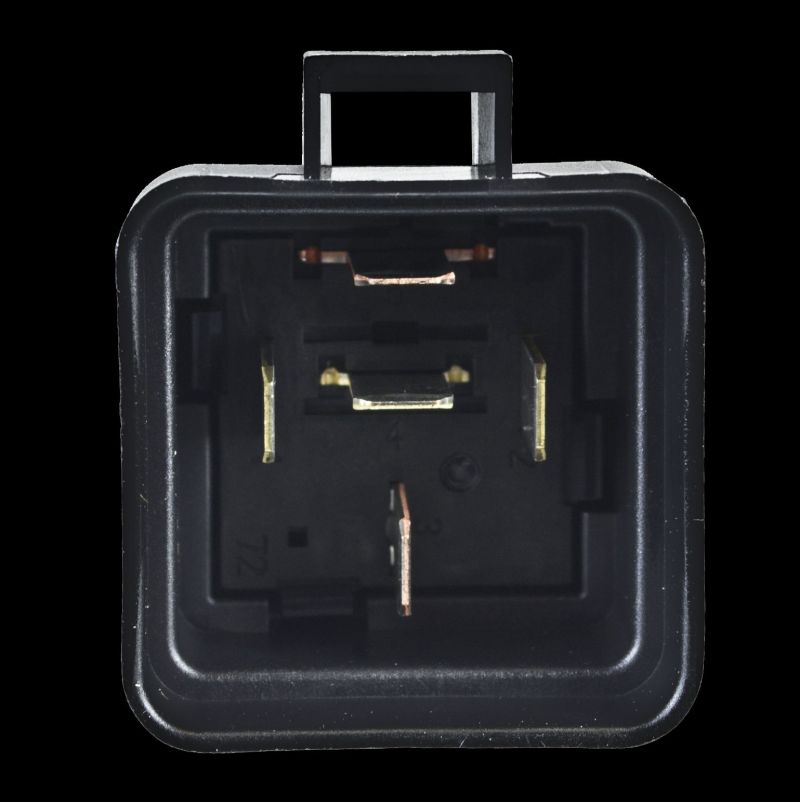

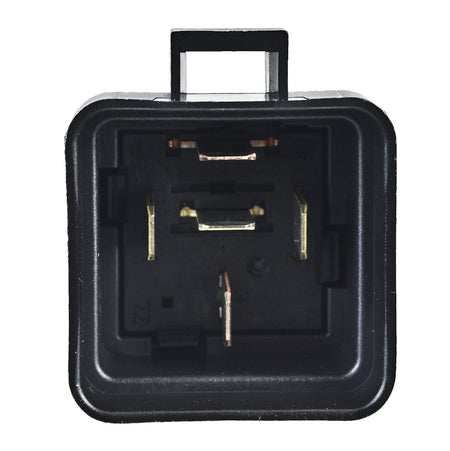

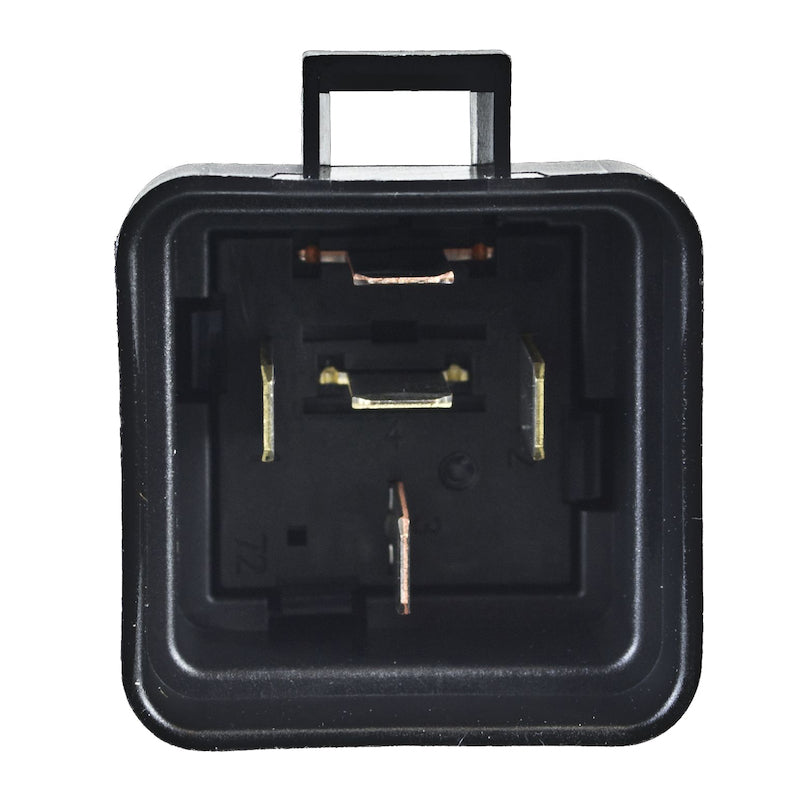

- Terminals: 5-pole, 6.3 x 0.8 mm blades per ISO 8092

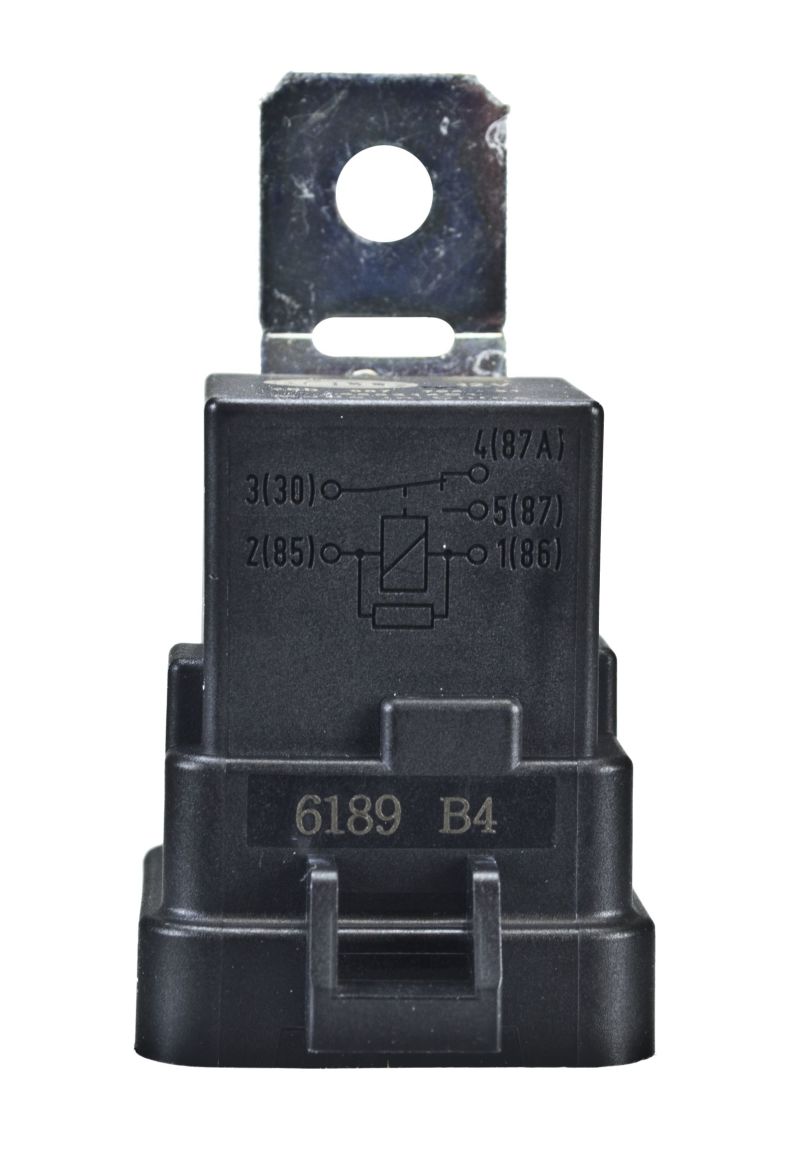

- Terminal designations: 30 load input, 85 and 86 coil, 87 make output, 87a break output
- Mates with HELLA weatherproof relay connectors such as H84709001 and H84709011
