Hamilton Cams

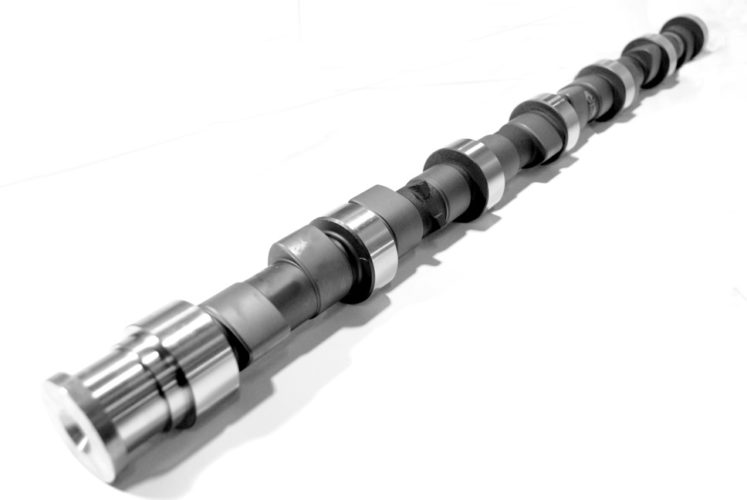

Hamilton Cams 188/220 Street Strip Camshaft 89-18 5.9L 6.7L Cummins

SKU: 07-c-188/220 UPC: 857340008117
In stock - 1 items available
$649.00

Have a question about this part? We'll answer it.

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm. For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase. Orders shipping to restricted areas may be canceled.

A cast performance grind for street, towing, drag and stock-class pulling use. Duration is 188 degrees intake and 220 exhaust at .050 inch, giving a 1,700-4,500 RPM powerband. Hamilton reports 40-60 horsepower gains depending on fueling and turbocharger combination, along with a 200-300F drop in exhaust gas temperature under load.

Key Features

  • 188/220 duration at .050 inch lift
  • 1,700-4,500 RPM operating range
  • 40-60 HP gain with supporting modifications
  • Reduces EGT by 200-300F under load
  • Improved cylinder filling and exhaust scavenging to support larger injectors, bigger turbochargers and ported heads
  • Works on both 12-valve and 24-valve engines

Fitment

  • 1989-2007 Dodge Ram 5.9L Cummins
  • 2007.5-2018 Ram 6.7L Cummins
  • Flat-tappet engines only

Clearance Requirements

  • 12-valve drop-in: maximum .018 inch piston protrusion, minimum .055 inch valve face depth, standard thickness head gasket, 99-degree intake centerline
  • 24-valve drop-in: maximum .018 inch piston protrusion, minimum .038 inch valve face depth, standard thickness head gasket
  • If minimum clearance is not met, use an oversized head gasket or machine valve reliefs
  • Verify piston-to-valve clearance on every engine regardless of advertised drop-in compatibility
  • Upgraded valve springs are required and new tappets are recommended whenever a camshaft is replaced
  • Hamilton Cams warranties camshafts only when installed with Hamilton Cams tappets and valve springs.

Break-In and Oil

Apply quality assembly lube to all lobes and lifter faces, prime the oil pump and filter, then crank with fuel disabled until oil pressure is confirmed. Never allow the engine to start without oil pressure. Bring it fully to operating temperature, perform any hot retorque before setting valve lash, then change oil and filter before normal service.

Flat-tappet valvetrains require 15W-40 oil with adequate zinc, phosphorus and molybdenum (5W-40 in sub-zero conditions). Approved oils include Valvoline, Schaeffer's, Mobil Delvac Extreme, LIQUI MOLY Touring High Tech, Driven Racing Oil and Shell Rotella.

Product Details

  • Brand: Hamilton Cams
  • Manufacturer Part Number: 07-c-188/220
  • UPC: 857340008117
