Hamilton Cams 188/220 Steel Street Strip Camshaft 89-18 5.9L 6.7L Cummins
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$699.00
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.

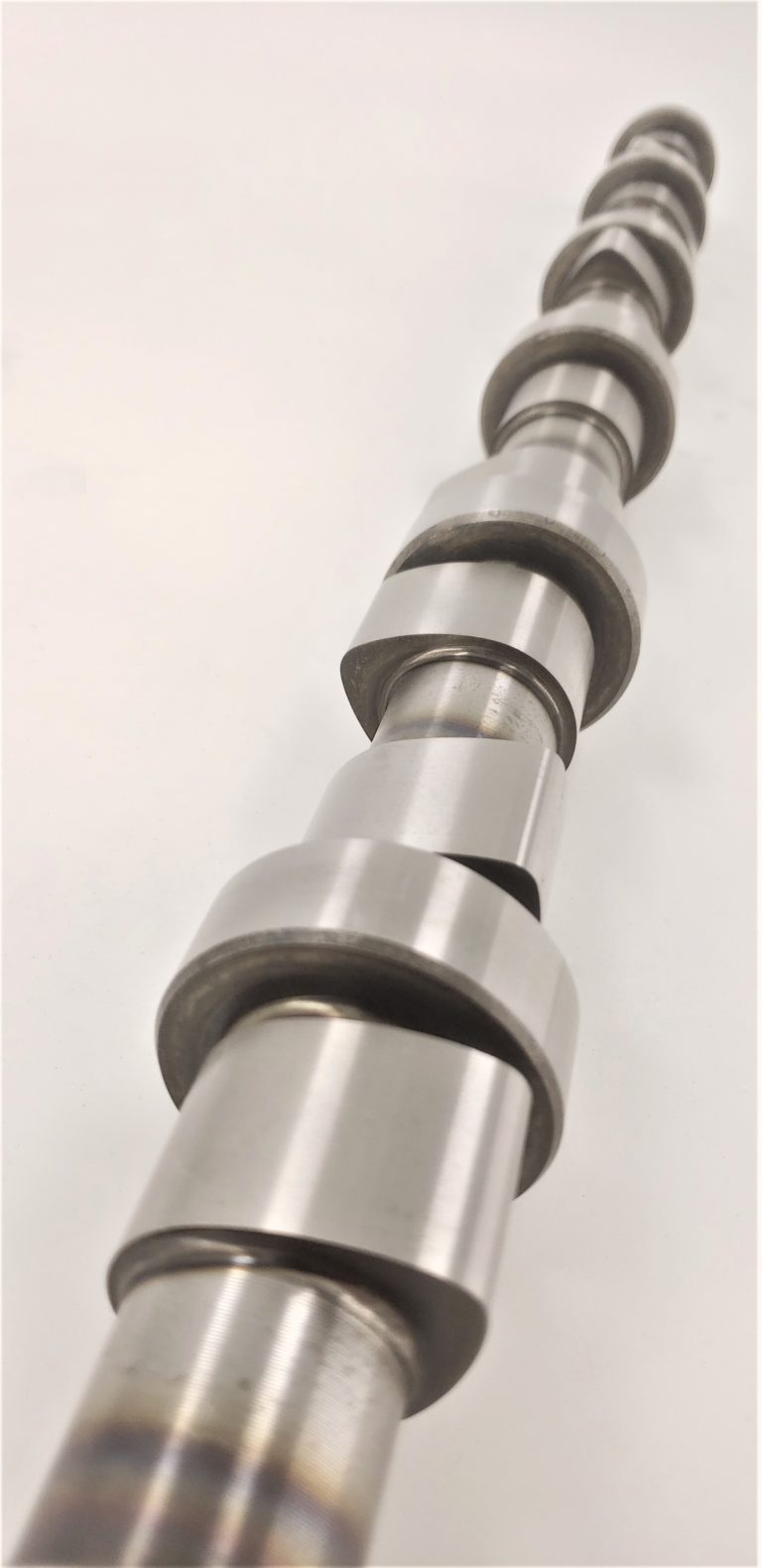

Steel-core version of the 188/220 grind, for builds that have outrun a cast camshaft. Same 188 degrees intake and 220 exhaust at .050 inch, same 1,700-4,500 RPM band, with Hamilton reporting 40-60 horsepower depending on fueling and turbo, and a 200-300F reduction in EGT.
Key Features
- 188/220 duration at .050 inch lift
- 1,700-4,500 RPM operating range
- 40-60 HP gain depending on fueling and turbocharger
- Drops EGT by 200-300F
- Forged steel core for high-load applications
Fitment
- 1989-2007 Dodge Ram 5.9L Cummins
- 2007.5-2018 Ram 6.7L Cummins
- Flat-tappet engines only
Clearance and Installation Requirements
- The steel core requires at least two bushings installed in the cam tunnel; running steel directly against cast iron will damage the block
- 12-valve drop-in: maximum .018 inch piston protrusion, minimum .055 inch valve face depth, standard head gasket, 99-degree intake centerline
- 24-valve drop-in: maximum .018 inch piston protrusion, minimum .038 inch valve face depth, standard head gasket
- If clearance falls short, run an oversized head gasket or cut valve reliefs
- New tappets are recommended whenever a camshaft is replaced
- Hamilton Cams warranties camshafts only when installed with Hamilton Cams tappets and valve springs.
Recommended Applications
- Drag strip
- Stock-class pulling
Break-In and Oil
Apply a liberal amount of quality assembly lube to the cam. On a fresh build, prime the oil pump with assembly lube and prime the filter. Disconnect fuel and crank until oil pressure registers or oil reaches the rocker arms. Never let the engine start without oil pressure. Run to operating temperature, hot retorque the head if required, then set valve lash and change the oil.
Flat-tappet valvetrains require 15W-40 oil with adequate zinc, phosphorus and molybdenum (5W-40 in sub-zero conditions). Approved oils include Valvoline, Schaeffer's, Mobil Delvac Extreme, LIQUI MOLY Touring High Tech, Driven Racing Oil and Shell Rotella.
Product Details
- Brand: Hamilton Cams
- Manufacturer Part Number: 07-c-188/220S
Shipping Height: 0.0
Shipping Length: 0.0
Shipping Width: 0.0
