Fuelab

Fuelab 595 Ultralight Fuel Pressure Regulator -8AN EFI 25-90 PSID

SKU: flb59501-1 UPC: 845096015503
In stock - 8 items available
$227.00

Have a question about this part? We'll answer it.

Verified Fitment & Application Support

This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.

Got Questions? Feel free to email us or call us at (503) 235-1947

Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm. For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase. Orders shipping to restricted areas may be canceled.

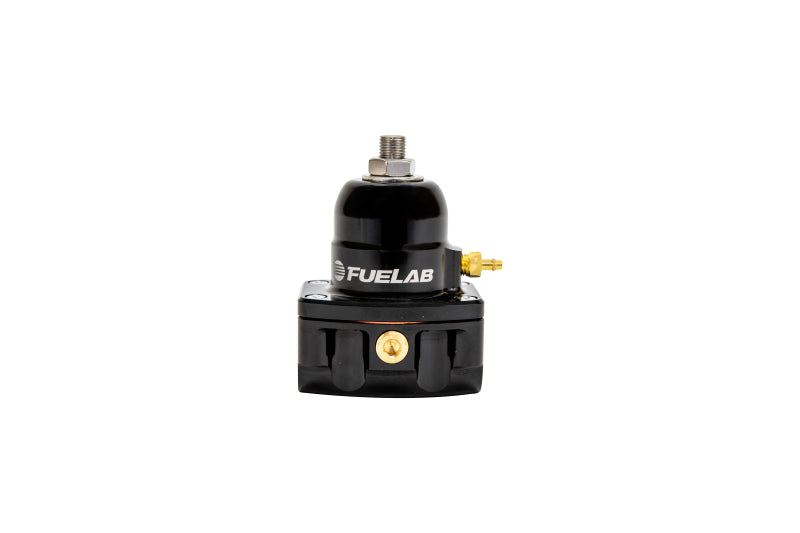

Fuelab 595 Ultralight Fuel Pressure Regulator -8AN EFI 25-90 PSID (flb59501-1). The Fuelab 595 Series Ultralight is a bypass fuel pressure regulator that weighs roughly 30 percent less than the 515 and 525 Series while keeping the same regulation quality. This model uses two -8AN inlets, a -6AN return and a 25-90 PSID EFI range.

Key Features

  • Weighs approximately 30 percent less than the 515 and 525 Series
  • Two -8AN inlet ports and one -6AN return port
  • Large return orifice as a standard option
  • 25-90 PSID EFI adjustment range
  • 1/16 in NPT pressure reference port with barbed fitting
  • Machined from 6061-T6 billet aluminum, hand assembled and serialized
  • Anodized per military spec MIL-A-8625, Type II
  • Gasoline, diesel, methanol and ethanol compatible
  • Fine thread pitch for precise pressure adjustment
  • 1/8 in NPT gauge port with plug for an external pressure gauge

Fitment

Universal application. This is a universal fuel pressure regulator and is not specific to a vehicle year, make or model. Select by port size, seat size and pressure range to suit your fuel system.

Product Details

  • Brand: Fuelab
  • Series: 595 Ultralight Series Bypass Fuel Pressure Regulator
  • Inlet Ports: Two -8AN
  • Return Port: -6AN
  • Pressure Range: 25-90 PSID (EFI)
  • Warranty: Fuelab limited lifetime warranty

Shipping Height: 2.8

Shipping Length: 5.1

Shipping Width: 5.0
