Fuelab H/E Series SAE 10-Bolt Flange Mount Brushless Fuel Pump 500 LPH 1250 HP
⚠ Call for Availability
This item may be on backorder. Please contact us to confirm supplier availability and estimated lead time before ordering.
Regular price
$1,364.00
Verified Fitment & Application Support
This product is selected for proper fitment and compatibility with the listed engine application. Our team is available to assist with fitment questions, installation considerations, and supporting components to ensure a smooth install and reliable performance.
Got Questions? Feel free to email us or call us at (503) 235-1947
Compliance & Restrictions
California Proposition 65 (Prop 65)
WARNING: This product can expose you to chemicals which is known to the State of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov.
CARB / California Emissions Compliance
This item may be restricted in California and other regions with emissions regulations. If applicable, it is intended for
competition/off-road use only unless otherwise stated. It is the customer’s responsibility to confirm local compliance before purchase.
Orders shipping to restricted areas may be canceled.

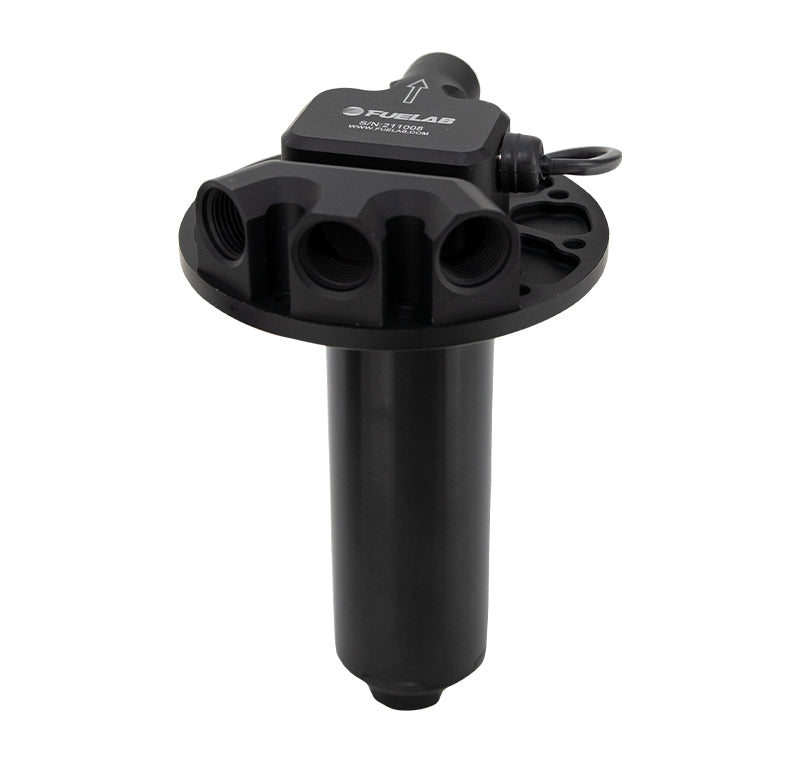

Fuelab H/E Series SAE 10-Bolt Flange Mount Brushless Fuel Pump 500 LPH 1250 HP (flb93903). This Fuelab H/E Series pump mounts through an SAE 10-bolt flange, which makes it a direct fit for fuel cells and fabricated reservoirs that already use that pattern. It is rated at 500 LPH at 45 PSI and supports up to 1250 HP.
Key Features
- Rated 500 LPH at 45 PSI, supporting up to 1250 HP
- SAE 10-bolt flange mount pattern for fuel cells and fabricated reservoirs
- Gasket, straining filter and adjustable pickup tube included
- Acceptable tank depth range of 7-3/4 in to 16 in
- 12 to 16 volt electrical system compatibility
- Twin screw rotor pumping mechanism
- 125 PSI maximum operating pressure
- Lightweight, high efficiency DC brushless motor for low current draw
- Neodymium rare earth magnets, no brushes to wear out or corrode
- Wet motor design with no dynamic shaft seals
- Superior priming and improved resistance to cavitation and vapor lock
- Compatible with gasoline, diesel, methanol and ethanol
Fitment
Universal application. This pump is not specific to a vehicle year, make or model and mounts through a standard SAE 10-bolt flange. Confirm your tank or reservoir uses that pattern and falls within the supported depth range.
Product Details
- Brand: Fuelab
- Series: H/E Series Flange Mount Brushless Twin Screw Fuel Pump
- Flow Rating: 500 LPH at 45 PSI
- Horsepower Rating: Up to 1250 HP
- Maximum Operating Pressure: 125 PSI
- Mounting: SAE 10-bolt flange
- Included: Gasket, straining filter, adjustable pickup tube
- Warranty: Fuelab limited lifetime warranty
Shipping Height: 6.0
Shipping Length: 13.25
Shipping Width: 6.0
